Features

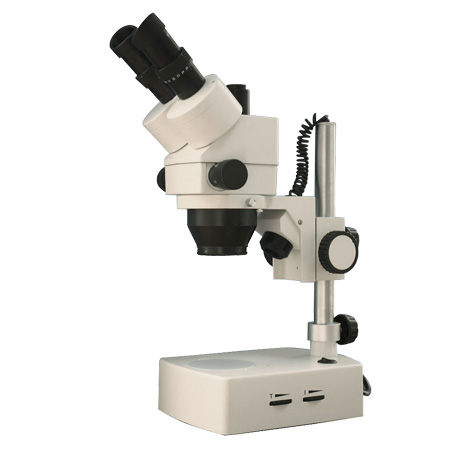

▲ Stereo Binocular Microscope - Turret Style Selectable Magnification.

▲ Wide-field, distortion-free.

▲ Zoom objective magnification 0.7X-4.5X.

▲ Viewing head: 45°inclined, 360°rotatable binocular head or trinocular head. The interpupillary distance between the microscope eye tubes, adjusts from 55mm to 75mm to fit each user.

▲ Great Economical Price! Priced thousands Lower than Competition!

▲ Scope sells for hundreds more in several science catalogs!

Other Specifications

· Manufactured under ISO: 9001 Standards.

· 220 VAC Power Requirement (Contact us about 110V availability).

· High Quality Solid Construction!

· Precision Made Glass Optics!

Manufacturer's Warranty

· Warranty is 1 year on free for all microscope equipment.

· The microscope warranty covers problems arising from normal usage.

· We will repair or replace your defective microscopy equipment as needed during the warranty period.

Product configuration and main parameter

(1) MZ61-1 Series

Model Specification	MZ61-1A	MZ61-1B	MZ61-1C
Eyepieces	WF10X (¦µ20mm)
Objective	Objectives range of zoom magnification 0.7X~4.5X
Total magnification	7X~45X
Visual field	¦µ28.5~¦µ4.5
Working distance	88mm
Vertical effective movement	25mm <= h < 265mm		25mm <= h < 240mm
Base size	240X180X25mm	300X240X25mm	240X180X25(mm)with movable stage, movement range:42X42(mm)

Note: Please append a letter "T" in the backside of correspond model when you select the trinocular body.

(2) MZ61-2 Series

Model Specification	MZ61-2	MZ61-2A
Eyepiece	WF10X(¦µ20mm)
Objective	Objectives range of zoom magnification 0.7X~4.5X
Total magnification	7X~45X
Visual field	¦µ28.5~¦µ4.5
Working distance	88mm
Vertical effective movement	25mm <= h < 265mm	25mm <= h < 130mm
Base size	215X160X60mm
Illumination model	Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness

Note: Please append a letter "T" in the backside of correspond model when you select the trinocular body.

(3) MZ61-3 Series

Model	MZ61-3	MZ61-3A
Eyepiece	WF10X(¦µ20mm)
Objective	Objectives range of zoom magnification 0.7X~4.5X
Total magnification	7X~45X
Visual field	¦µ28.5~¦µ4.5
Working distance	88mm
Vertical effective movement	25mm <= h < 265mm	25mm <= h < 130mm
Base size	215X160X60mm
Illumination model	Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness

Note: Please append a letter "T" in the backside of correspond model when you select the trinocular body.

(4) MZ61-101, 102Series

Model Specification	MZ61-101	MZ61-102
Eyepiece	WF10X (¦µ20mm)
Objective	Objectives range of zoom magnification 0.7X~4.5X
Total magnification	7X~45X
Visual field	¦µ28.5~¦µ4.5
Working distance	88mm
Vertical effective movement	35mm <= h < 215mm	35mm <= h < 265mm
Base size	260X290X55mm	300X240X25mm
Illumination model	Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness Transmitted light source:12V10W halogen lamp and adjustable brightness	Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness

Note: Please append a letter "T" in the backside of correspond model when you select the trinocular body.

Optional accessories
