RFID Radio Frequency
| Item No.: | DF750/760 |
Supplier Details
Country: Taiwan
City: New Taipei City
Address: 8F, No. 31 Lane 169, Kang-Ning Street, Hsi-Chih Dist
TEL: +886-2-26954214
Fax: +886-2-26954213
Online Showroom:
84 Products

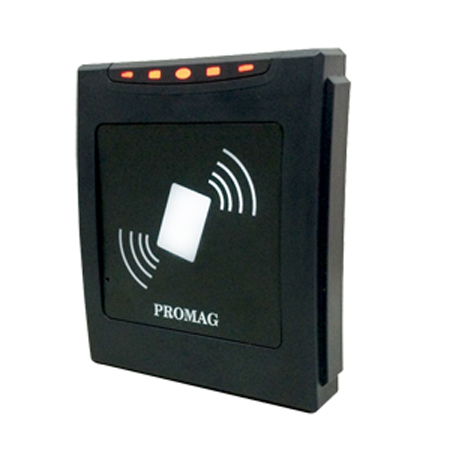

DESFire® / Mifare® Sector Reader
DF750/DF760 & DF750K/DF760K Series readers for Mifare sector and Mifare DESFire technology are user end configurable. In a Mifare application open system, they can read Mifare DESFire cards with MAD3 or Mifare MAD1/MAD2 standard sectors and in a user defined closed system, they can read user defined sectors (Non-MAD).
| Indoor/Outdoor design | Weather resistant with metal keypad. Protection classification: IP66 |
| Security | Mutual three pass authentication, DES & 3DES MACing/Encipherment. |
| 3 in 1 Output interface | Wiegand (default) / ABA TK2 / RS232 or RS485. Wiegand output selectable from 1 bit to 128 bits. RS232/RS485 packets can be set with Header, Reader ID and Trailer. |
| LED/BUZZER | Internal LED and buzzer are configurable or controlled with RS232 commands or wires. |
| Multi-Applications | Supports Mifare MAD1/MAD2, DESFire File standards and customer MAD-AID setting. Supports non MAD format with user defined sector number. * DF750/DF750K: Reads Mifare DESFire or Mifare classic cards with passcode. |
| Multi-readers | Can be set with a Reader ID number for multi-unit communication. |
| Certification | R&TTE / FCC |
| Keypad | DF750K/DF760K: Metal keypad with 4*3 keys and output 4/6/8 bits wiegand/ASCII code or Buffering. |
Specifications:
| Security | DES/3DES MACing/Encipherment |
| Interface | DF750/DF750K: RS232 DF 760/DF760K: RS485 |
| Power requirements | 7.5 ~ 24 V * regulated power is recommended |
| Card type | Mifare DESFire (4K/8K for MAD3) MIFARE Classic (1K/4K for MAD1/MAD2) |
| Maximum reading distance | Mifare: Up to 11 cm (MFA01A) DESFire: Up to 6 cm (CRD T0011) @ 12V |
| Frequency | 13.56 MHz standard |
| Card format | MAD1/MAD2 and MAD3 |
| Audio/Visual indication | Internal LED and Buzzer |
| Dimensions | 112.3 L x 96 W x 22D mm |
| Housing material | DF750/760 ABS housing DF750K/DF760K ABS housing & Metallic keys |
| Environment | Operating temperature 0°c to + 60°c; Operating relative humidity 10~90 % |
| Protection classification | IP66 |
| Certification | R&TTE / FCC |
* Specifications are subject to change without notice.
Applications:
Access control system
Time attendance
Guest registration system
Authorization identification
Identity Authentication
