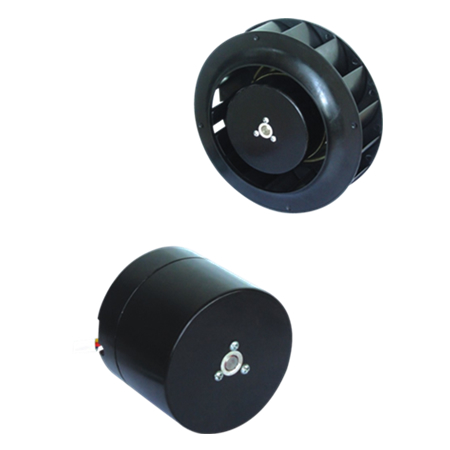

CDC Series Motors
| Item No.: | CDC-140QJ-48-X |
Supplier Details
Country: China
City: Guangzhou P.R.C
Address: No. 3, Huancun Road, ShanMen Village, Hua Long, Panyu District
TEL: +0086-20-84780818
Fax: +0086-20-84780818
Online Showroom:
59 Products
CDC-140 Q J-48-X
1 2 3 4 5 6
1. Brushless Motors
2. Impeller Diameter
3. Impeller Model
Q: Forward Centrifugal Impeller
H: Backward Centrifugal Impeller
Z: Axial Impeller
4. Material: Metal Impeller, A: Plastic Impeller
5. Voltage: 12V, 24V, 48V, 310V
6. Customer Code: X can be A, B, C, D, etc.
Technical Parameters of CDC Series Motors
| No. | Model No. | A(mm) | B(mm) | C(mm) | Rated Voltage (v) | Input Power(W) | Rated current | Rotation Speed (r/min.) | Operating Temperature (℃) | N.Curve |
| 1 | CDC-140QJ-48A | 140 | 59 | 48 | 48 | 68 | 1.4 | 2250 | -20 +60 | ① |
| 2 | CDC-140QJ-48B | 140 | 68 | 48 | 48 | 68 | 1.4 | 2000 | -20 +60 | ② |
| 3 | CDC-140QJ-48C | 140 | 160 | 48 | 48 | 100 | 2.1 | 1800 | -20 +60 | ③ |
| 4 | CDC-160QJ-48A | 160 | 62 | 48 | 48 | 87 | 1.8 | 2020 | -20 +60 | ④ |
| 5 | CDC180QJ-48A | 180 | 90 | 48 | 48 | 130 | 2.7 | 1480 | -20 +60 | ⑤ |
| 6 | CDC190HA-48A | 190 | 45 | 48 | 48 | 48 | 1.0 | 2500 | -20 +60 | ⑥ |
| 7 | CDC-220HA-48A | 220 | 44 | 48 | 48 | 67 | 1.4 | 2450 | -20 +60 | ⑦ |
| 8 | CDC-252HA-48A | 252 | 40 | 48 | 48 | 77 | 1.6 | 2000 | -20 +60 | ⑧ |
| 9 | CDC-252HA-48B | 252 | 52 | 48 | 48 | 87 | 1.8 | 2050 | -20 +60 | ⑨ |
| 10 | CDC-252HA-48C | 252 | 56 | 48 | 48 | 96 | 2.0 | 2000 | -20 +60 | ⑩ |
| 11 | CDC-280HJ-48A | 280 | 52 | 48 | 48 | 100 | 2.1 | 1680 | -20 +60 |
⑪ |
Remark: 1. The above is the curve designation
2. The above is the list of DC brushless motors of CRO
