1.  Scope
This specification describes the structure, performance, testing method, warning and caution of the Lithium Iron Phosphate battery.
2.  Structure D esign
2.1  Model:500V 150Ah

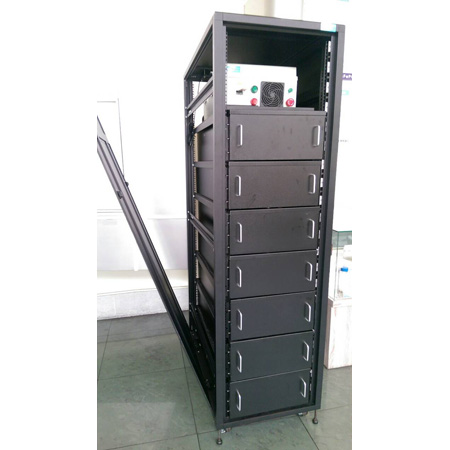

2.2  Dimension of Battery Pack (with Cabinet)
2.2.1  Module size:W*D*H 450 x 930 x 440mm
2.2.2  Cabinet size:W*D*H 600 x 1000 x 2060mm *2 2.3 Cell:LFP3240138
2.4  Each 58.4V 150Ah battery module will be assembled by 16S9P of LFP3240138 cells.
2.5  Assembly style: The battery pack consists of six series overall box 58.4V 150Ah battery case

Explanation:Make sure the battery wire in series meets the requirement of current flow. Battery output pole (discharge / charge) using> 60mm2 wire, pole connecting lines designed to meet the required flow capacity of the battery pack work properly.


3.  Basic Performance(Battery Pack)

NO.


Item


Specification


Remark


1

Nominal Capacity

150Ah

(Min:144.0Ah)

Standard Charging, 0.2C CC(constant current)discharge to 280V cut off, at 23±3℃

2

Nominal Voltage

614V

Standard Output Nominal Voltage

3

Standard Charge Current

150A(1C)

0℃~45 150A(1C) CC(constant current)charge to 504V,then CV(constant voltage 525V)charge till charge current≤0.01C

4

Charge Ending Voltage

700 V

Best for 0.3C CC/CV 700V,0.01C cut off.

5

Temperature while charging

0℃~45℃

During  battery  charging process,  battery and ambient temperature does not exceed 45℃

6

Temperature while discharging

-20℃~65℃

The specified temperature range, the battery work

normally within the framework of capacity loss in the error

7

Module Weight

<45Kg

Include wires

8

Battery Cabinet Weight (with modules)

<450Kg

Include wires and packaging material

9

Module Impedance

≤20mΩ

AC Impedance


4.  Pack Performance Data
4.1  Battery Pack Performance

NO.

Item

Criterion

Test  Method

1

C-rate characteristics

0.2C

100

Test Temperature:23±3°C

Charge:0.2C,CC/CV,525V, current≤0.01C cut-off Discharge:2C CC,360V cut off

2C

≥95

2

Temperatue Dependence of Capacity

60℃

≥95

Charge:0.2C,CC/CV,525V, current≤0.01C cut-off,at

23±3°C

Discharge: At setting temperature 0.5C,CC,280V cut-off

(Interval for temperature change is 2 hours)

45℃

≥95

23℃

100

0℃

≥65

-10℃

≥50

3

Cycle Life Characteristics

800~1200cycles 800~1200

Charge:0.2C(10.2A) CC/CV,525V,current  ≤ 0.01C

cut-off

Discharge 0.5C CC 360V cut-off

When the discharge capacity reduced to 70 of initial capacity, Stop testing.

4

Storage Characteristics (Recovery Capacity)

23℃

≥95

On a storage, Cell state is 60 ~75 charge

45℃

≥90

60℃

≥90


NO.

Item

Criterion

Test  Method

1

Constant temperature and constant humidity test

No explosion,No fire,no leakage. Discharging capacity is not less than   initial capacity

After Standard Charging, test condition:Temperature:40±5°C Relative Humidity:90~95RH Storage Tine:48Hours

Then return to room temperature for 2 hours, Then 1C discharge to ending voltage

2

Vibration Test

No explosion,no fire,no leakage

After standard charging, fixed the cell to vibration table, then subjected to vibration test for 30 minutes per axis of XYZ axes

Frequency rate:1oct/min

Vibration frequency:10Hz-30Hz

Excursion(single amplitude):0.38mm

Vibration frequency:30Hz-55Hz

Excursion(single amplitude):0.19mm

3

Low-pressure

No explosion, no fire,no leakage

23±3°C .Stalled in really empty, gradually reduce the internal pressure ≤ 11.6 kPa (simulated altitude 15240m) and maintain 6 hours.

4

Drop Test

No explosion,no fire,no leakage

Drop the battery in the shipment condition from 1m height onto 5cm thicker concrete with p-tile on it 3 times each of X,Y and Z directions at 23±3°C


4.2  Cell Environment Characteristics

NO.

Item

Criterion

Test  Method

1

Overcharge Test

No explosion, no fire.

3C,CC/CV,10V at 23±3°C;When the capacity reach 2.5C or time reach 60 minutes, end test.

2

Over discharge Test

No explosion, no fire.

After discharged to the cut-off voltage. The battery shall be subjected to a short-circuit condition with a load of resistance less than 30Ω for 24 hour.

3

Heating Test

No explosion, no fire.

A battery is to be heated in a gravity in a   gravity convection or circulating air oven. The temperature of the oven is to be raised at a rate of 5±2°C/min to a temperature of 130±2°C at which temperature the oven is to remain for 30 minutes before the test is discontinued.

4

High Temp Test

No explosion, no

fire.Recovery Capacity

≥ 80

After standard charge ,leaving the battery at 85°C for 4 hours.

5

Short-circuit

Test

No explosion,

no fire.

After standard charge, the battery shall be subjected to a short-circuit condition with a wire of resistance less than 100mΩ  for 1 hour.


5.  PCM Specification
5.1  Electrical Characteristics(Normal temperature, Relative  humidity≤90)

NO.

Item

Test  standard  value

1

Over charge Protection voltage

3.65±0.025V/

2

Over current Protection current

320A

3

Over temperature protection

65°C


5.2  Basic Circuit Diagram


5.3  Communication Interface: RS232 to USB, the software can monitor the battery status through

6.  Storage and Shipment Requirement

Item

Requirement

Storage temperature

Short period less than 1 month

 -10°C ~ +45°C

Long period less than 6 month

 -10°C ~ +35°C

Humidity

 <75 RH

Charged

About charged state 50~75


7.  Period of Warranty
The period of warranty is one year from the date of shipment. tron-e guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
