Technical Specificate:
Item NO.TM-3624

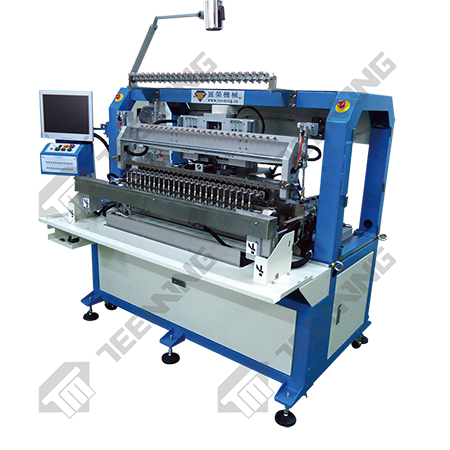

Description: 24 SPINDLE WINDING MACHINE
Number of spindles: 24
Control system: AC Servo Motor
Data storage: 1GB CF Card
Tensioner: Mechanical
Spindle Pitch: 36 mm
Max.Bobbin Diagonal: 26 mm Bobbin width under 18mm
Max.Width of winding: 85 mm
Winding Speed: 18000 RPM
Winding Direction: CW/CCW
Spindle Stop Accuracy: +/-0.225 degrees
(AWG/mm) Wire Range: AWG48~28/0.03~0.3mm
Maximum Travel Distance X: 90 mm
Maximum Travel Distance Y: 90 mm
Maximum Travel Distance Z: 55 mm
XYZ Axes Increment(Step): 0.02mm (mechanical),0.001 mm (program)
Wire Wrapping Angle: 0°/90°
Maximum Wrapping Speed: 200mm/sec
Power source: 3¢ AC 220V,50/60 HZ
Consumed power: 7KW
Air Pressure Supply Required: 5-6 KGS/cm2(=0.5-0.6MPA)
Machine Dimension (Include screen): 185(L)X 115(W)x 155 (H)cm
Machine Dimension (Include screen and tensioner case): 185(L)x235(W)x 160(H)cm
Machine weight: 900KGS
Choice:
Wire Twister (Wire diameter under 0.05mm)
Automatic Loading & Unloading (Bobbin width under 22mm)
Cutter (Wire Diameter: Over 0.28mm)
Knife (Wire Diameter: Over 0.15mm)
Electric-tensioner

Remark:
Spindle: 24
Maximum twisting length: 300mm
Number of Wire Strands: 1.3.5.7.9.......Programmable
Maximum twisting speed: 5000 RPM
Suit coil: 13F、T73、115、4078
Application: Small type Relay

Feature:

1. Servo motor transmission system.
2. Password function,prevent program changed by accident.
3. Unique winding jig design,change jig easily and safety.
4. Simple structure,easy to maintenance.
5. Precise tension control.
6. Auto wire assortment,no residual wire leaving.
7. High-level language command to edit program.
