Wire Coiling Machine
| Item No.: | TM-1008 |
Item NO.TM-1008

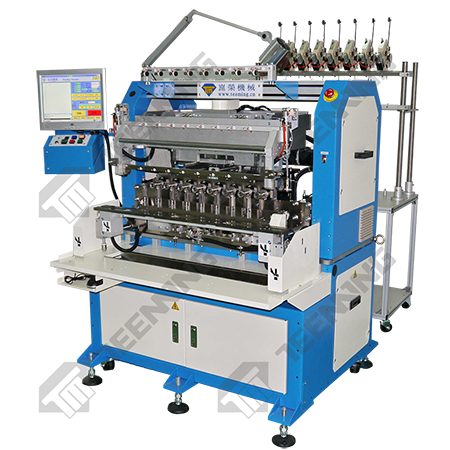

Description: 8 SPINDLE WINDING MACHINE
Description:
| Number of spindles | 8 |
| Control system | AC Servo Motor |
| Data storage | 1GB CF Card |
| Tensioner | Mechanical |
| Wire Wrapping Angle | 0°/90° |
| Power source | 3¢ AC 220V, 50/60 HZ |
| Consumed power | 5KW |
| Winding Speed | 6000 RPM |
| Winding Direction | CW/CCW |
| Spindle Stop Accuracy | +/-0.225 degrees |
| Air Pressure Supply Required | 5-6 KGS/cm2(=0.5-0.6MPA) |
| Machine weight | 800KGS |
Description: Size:
| Spindle Pitch: | 100mm |
| Max. Bobbin Diagonal | 80 mm Bobbin width under 75mm |
| Max. Width of winding | 95 mm |
| (AWG/mm) Wire Range | AWG48~28/0.03~0.5mm |
| Maximum Travel Distance X/Y/ Z | 100 mm/100 mm/80 mm |
| XYZ Axes Increment(Step) | 0.02mm (mechanical),0.001 mm (program) |
| Maximum Wrapping Speed | 200mm/sec |
| Machine Dimension (Include screen) | 180(L)X 125(W)x 160 (H)cm |
| Machine Dimension (Include screen and tensioner case) | 180(L)x235(W)x 160(H)cm |
Options:
- Wire Twister(Wire diameter under 0.05mm)
- Unloading & Automatic Load(Bobbin width under 22mm)
- Cutter (Wire Diameter: Over 0.28mm)
- Knife (Wire Diameter: Over 0.15mm)
- Electrical tensioner
| Spindle | 8 |
| Maximum twisting length | 300mm |
| Number of Wire Strands | 1.3.5.7.9.......Programmable |
| Maximum twisting speed | 5000 RPM |
| Suit Coil | EI66 |
Advantage:
No need complicate maintenances / no noise / with smooth working, easy operation and maintenance
High speed winding area is away from contamination,also can enhance the productivity.
Notice:
- The machine must be installed flat and nonvibrating.spare parts must be lubricated plenty.
- Clean and clear dirt on machine for keeping machine in good condition.
