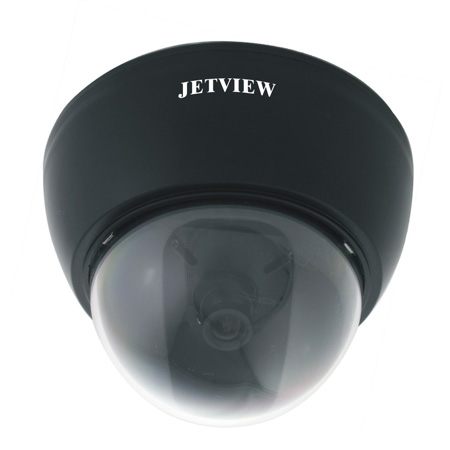

Dome Camera
Item No.: | G2 Series-JV-1AG2PZ |
Rincian pemasok
Negara
: Cina
Kota
:
Alamat
:
TEL: +86-12-123456
Fax
: +86-16-23654
Showroom online
:
57 Produk
Fitur Utama:
* 1/3 "Sony Super HAD II
* Resolusi: 540TVL
* Suhu Operasi: -15 ℃ ~ 55 ℃
Spesifikasi
<>p{margin:0;}<>
* 1/3 "Sony Super HAD II
* Resolusi: 540TVL
* Suhu Operasi: -15 ℃ ~ 55 ℃
Spesifikasi
<>p{margin:0;}<>
Model | JV-1AG2PZ | |||
JV-1AG2NZ | ||||
Image Sensor | 1/3 "Sony Super HAD II | |||
Sinyal Sistem | PAL / NTSC | |||
Efektif Pixel | PAL: 752 (H) 582 (V) | |||
NTSC: 768 (H) 494 (V) | ||||
Resolusi Horisontal | 540TVL | |||
Minimum Illumination | 0.03Lux/F1.2 | |||
Sinkronisasi Sistem | Intern | |||
S / N Radiasi | Lebih dari 50dB | |||
Electronic Shutter Speed | 1/50 ~ 100.000 Sec. (PAL), 1/60 ~ 100.000 Sec. (NTSC) | |||
White Balance | Otomatis | |||
Output Video | BNC 1.0Vp-p, 75ohm | |||
Lensa | 4mm, 6mm, 8mm (Opsional) | |||
Power Supply | DC12V | |||
Dikonsumsi Saat Ini | 150mA (Max.) | |||
Operasi Kondisi | -15 ℃ ~ 55 ℃, RH85% (Max.) | |||
Bahan dari Boday | Plastik | |||
Berat Bersih | 210g | |||
Berat Kotor | 260G | |||
Produk Dimensi | 115 x 88mm (DH) | |||
Paket Dimensi | 125 x 125 x 95mm (LWH) |
