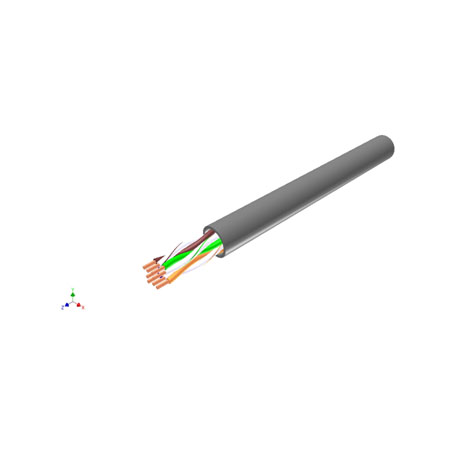

CAT 5E+ U-UTP SOLID CABLE
| Item No.: | 65504AP |
ISO/IEC 11801:2002(Ed.2.0), including amendments A1:2008 and A2:2010
61156-5:2009(Ed.2.0)
EN 50173-1:2011
EN 50173-2:2007 including amendment A1:2010
ANSI/TIA-568-C.2:2009
|
Capacitance unbalance (max.) @ 0.8 or 1 kHz(pF/km) |
1600 |
|
DC Resistance (max.) Ω/km @ 20℃ |
95 |
|
Resistance unbalance within a pair (max.) (%) |
2 |
|
Resistance unbalance between pairs (max.) (%) |
4
|
|
Delay Skew (max.) Ns/100m @ 20℃ |
45 |
|
Mean Input Impedance @ 100 MHz Dielectric strength |
100 ± 5Ω
Min Min 1.0kVdc 2.5kVdc or or 0.7kVac 1.7kVac for 1 min. for 2 secs. |
ELECTRICAL PERFORMANCE
|
MEET IEC 61156-5 ed2.0 Category 5e horizontal cable parameters | |||||||
|
Freq. (MHz) |
Ins.Loss |
RL |
Pair to Pair |
Power Sum |
Po. Delay | ||
|
NEXT |
ELFEXT |
NEXT |
ELFEXT | ||||
|
(dB/100m) |
(dB) |
(dB/100m) |
(dB/100m) |
(ns/100) | |||
|
Max. |
Min. |
Min. |
Min. |
Max. |
Min. |
Max. | |
|
1 |
- |
20.0 |
- |
- |
- |
- |
- |
|
4 |
4.1 |
23.0 |
56.3 |
52.0 |
53.3 |
49.0 |
552.0 |
|
10 |
6.5 |
25.0 |
50.3 |
44.0 |
47.3 |
41.0 |
545.4 |
|
16 |
8.3 |
25.0 |
47.2 |
39.9 |
44.2 |
36.9 |
543.0 |
|
20 |
9.3 |
25.0 |
45.8 |
38.0 |
42.8 |
35.0 |
542.0 |
|
25 |
20.4 |
24.3 |
44.3 |
36.0 |
41.3 |
33.0 |
541.2 |
|
31.25 |
11.7 |
23.6 |
42.9 |
34.1 |
39.9 |
31.1 |
540.4 |
|
62.5 |
17.0 |
21.5 |
38.4 |
28.1 |
35.4 |
25.1 |
538.6 |
|
100 |
22.0 |
20.1 |
35.3 |
24.0 |
32.3 |
21.0 |
537.6 |
|
200 |
32.4 |
18.0 |
30.8 |
18.0 |
27.8 |
15.0 |
536.5 |
|
250 |
36.9 |
17.3 |
29.3 |
16.0 |
26.3 |
13.0 |
536.3 |
|
350 |
44.9 |
16.3 |
27.1 |
13.1 |
24.1 |
10.1 |
535.9 |
