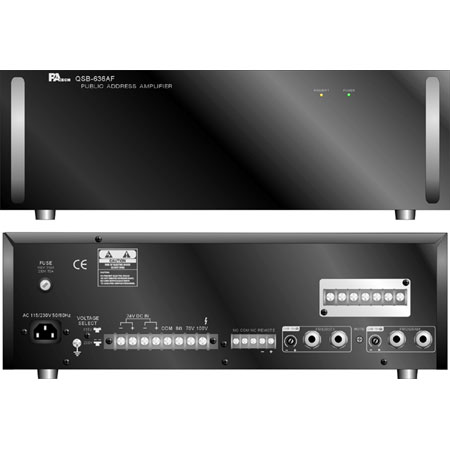

Zusatzverstärker
Einzelteil Nr. : | QSB-636AF |
Lieferanten-Sonderkommandos
Land
: Taiwan
Zustand
: Taiwan
Die Stadt
: Taipei
Adresse
: No.143,Chung HSing N.St.,San Chung City,Taipei,Taiwan,R.O.C.
TEL: +886-2-29957376
Fax
: +886-2-29956772

On-line Ausstellungsraum
:
50 Produkte
Stromversorgung AC 115/230V 50/60Hz, DC 24V
Ausgangsleistung 360 W RMS
Total Harmonic Distortion <= 1% bei 1 kHz
Sentivity PHONE JACK 1 V bei 10KW (BALANCED)
Ausgang 100 V, 70 V, 8 Ohm
Signal-Rauschabstand 86 dB
Priority Mute "PROGRAM"-Eingang
Fehlererkennungsschaltung YA-1000A-MODUL
AC Leistungsaufnahme 960 W @ RATED PO
DC Leistungsaufnahme 24A @ POW RATED
Dimension 132 (H) x 425 (W) x 355mm (D)
Gewicht 13 kg
Montage Freistehend oder 19 "RACK
Bruttogewicht 17,1 KGS
Ausgangsleistung 360 W RMS
Total Harmonic Distortion <= 1% bei 1 kHz
Sentivity PHONE JACK 1 V bei 10KW (BALANCED)
Ausgang 100 V, 70 V, 8 Ohm
Signal-Rauschabstand 86 dB
Priority Mute "PROGRAM"-Eingang
Fehlererkennungsschaltung YA-1000A-MODUL
AC Leistungsaufnahme 960 W @ RATED PO
DC Leistungsaufnahme 24A @ POW RATED
Dimension 132 (H) x 425 (W) x 355mm (D)
Gewicht 13 kg
Montage Freistehend oder 19 "RACK
Bruttogewicht 17,1 KGS
