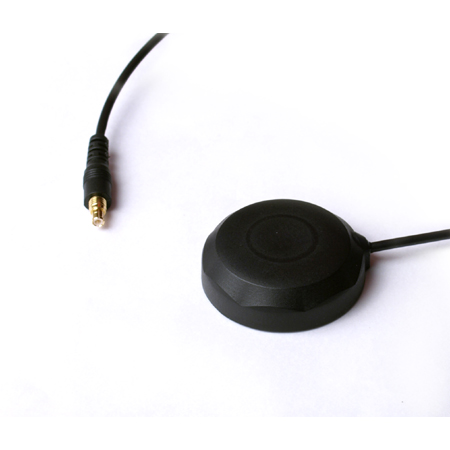

XM Radio Antenna
Item No.: | SDAR-21 |
Supplier Details
Country: Taiwan
State: Taiwan
City: CHANG HUA
Address: DONGSHI ST., XIZHI CITY, TAIPEI COUNTY 221
TEL: +886-2-26913490
Fax: +886-2-26914231

Online Showroom:
41 Products
Features:
1. Low profile antenna
2. Waterproof construction
3. High performance
4. Support both XM and Sirius radios
Application:
1. In-car XM or Sirius radio
2. Portable XM or Sirius radio
Specifications:
Frequency:2320~2345 MHz
Patch Gain (Satellite):XM: 1 dBi (peak)
Sirius: 3 dBi (peak)
Patch Gain (Terrestrial):XM: -2 dBi (peak)
Sirius: 0 dBi (peak)
Polarization:Satellite: LHCP
Terrestrial: Linear
Elevation:Satellite: 20° ~ 90°
Terrestrial: 0°
LNA Gain:30dB, typical
Noise Figure :1.2 dB typical
Output V.S.W.R :2.0 max
Voltage:3.6~5.5V DC
Current:24mA (4.5V)
Cable:3M
Connector:Fakra, MCX or SMA plug
Operating Temperature:-40°C ~ +90°C
Storage Temperature:-40°C ~ +90°C
