X Ray Film Scanner
| Item No.: | 6-4,NDT-2000 |
Supplier Details
Country: Taiwan
City: Hsinchu City 30075
Address: No. 6, Industry East Road 3, Science Based Industrial Park
TEL: +886-3-5772155
Fax: +886-3-5772598
Online Showroom:
55 Products

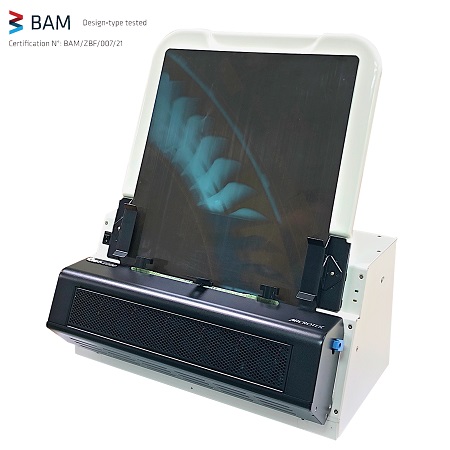

NDT/RT Industrial Film Digitizer
NDT/RT Industrial Film Digitizer
NDT-2000 Film Digitizing System is a down-to-earth digitization solution developed exclusively by Microtek for using in NDT/RT industry. This is a modified model from the MII-900 Plus which is able to provide better industrial digitizing images. Used together with MiiNDT, an image analyzation and management software, it is capable to offer more effective solutions for NDT/RT business which want to step into the field of digital management.
Besides retaining great functions of the original MII-900 Plus, such as 1200-dpi (21μm) optical solutions, 16-bit grayscale and exclusive AFF and multi-channel trays, NDT-2000 adopts better optical density via innovative image technology and therefore it can enrich image layers and meet with high requirements about image quality from the NDT/RT industry.
Features
Specifications
Resolution： 1200 dpi (21 μm)
Image Sensor Type： CCD
Light Source： LED
Color Modes： 8/16-bit grayscale
Scanning Area： 14” x 200” (355.6 mm x 5080 mm)
Scanning Speed： 3.5D: 58 sec @300 dpi, 14” x 17”
4.0D: 110 sec @300 dpi, 14” x 17”
4.5D: 232 sec @300 dpi, 14” x 17”
Optical Density： 0.37D ~ 4.5D
Dimensions (LxWxH)：
329 x 474 x 224 mm (12.9” x 18.7” x 8.8”)
329 x 474 x 544 mm (w/ feed tray)
Weight： 44.5 lbs. (20.2 kg)
OS Support： Windows
NDT/RT Industrial Film Digitizer
NDT-2000 Film Digitizing System is a down-to-earth digitization solution developed exclusively by Microtek for using in NDT/RT industry. This is a modified model from the MII-900 Plus which is able to provide better industrial digitizing images. Used together with MiiNDT, an image analyzation and management software, it is capable to offer more effective solutions for NDT/RT business which want to step into the field of digital management.
Besides retaining great functions of the original MII-900 Plus, such as 1200-dpi (21μm) optical solutions, 16-bit grayscale and exclusive AFF and multi-channel trays, NDT-2000 adopts better optical density via innovative image technology and therefore it can enrich image layers and meet with high requirements about image quality from the NDT/RT industry.
Features
- BAM certified and compliant with ISO 14096 DS 5.5 class
- 1200 dpi resolution, 4.5D optical density and 16-bit grayscale
- Green LED improves image capturing efficiency
- Maximum scanning area is up to 14”x200”, supporting most sizes of industrial films
- Optional AFF and multi-channel tray enhance working efficiency
- Optional Automatic Film Feeder (AFF) with 15-sheet capacity
- Optional Multi-Channel Film Feeder (MFF) allows to scan 2-3 sheets of films at a time
- Powerful image management software includes functions such as image archiving, searching, measuring, annotating, zooming, report making, viewing, CD-burning, and meets with DICONDE standard
- Supports image formats of DCM, BMP, JPEG and TIF
- Supports both lossy and lossless compression formats of JPEG 2000
Specifications
Resolution： 1200 dpi (21 μm)
Image Sensor Type： CCD
Light Source： LED
Color Modes： 8/16-bit grayscale
Scanning Area： 14” x 200” (355.6 mm x 5080 mm)
Scanning Speed： 3.5D: 58 sec @300 dpi, 14” x 17”
4.0D: 110 sec @300 dpi, 14” x 17”
4.5D: 232 sec @300 dpi, 14” x 17”
Optical Density： 0.37D ~ 4.5D
Dimensions (LxWxH)：
329 x 474 x 224 mm (12.9” x 18.7” x 8.8”)
329 x 474 x 544 mm (w/ feed tray)
Weight： 44.5 lbs. (20.2 kg)
OS Support： Windows
