WP8 Wiper Seals
| Item No.: | WP8 |
Supplier Details
Country: Taiwan
City: Nantou County
Address: No. 336, Gongye Rd., Nantou City
TEL: +886-49-2255011
Fax: +886-49-2250035
Online Showroom:
47 Products
Product Description

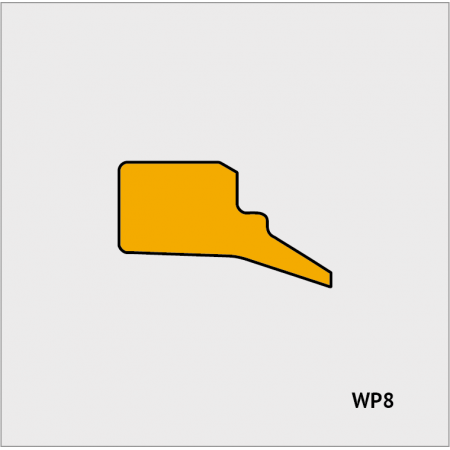

The WP8 Wiper Seal is a one-way seal made of polyurethane. The seal is used primarily for preventing pollutants from getting into the hydraulic cylinder. This helps protect the internal mechanism from wear. The seal is designed to be a perfect match for the assembly groove so that it can’t be twisted or deformed when it is in use. The WP8 is mostly used in agricultural equipment and earth-moving machinery.
Material
Polyurethane
Operating Conditions
Surface Roughness
The WP8 Wiper Seal is a one-way seal made of polyurethane. The seal is used primarily for preventing pollutants from getting into the hydraulic cylinder. This helps protect the internal mechanism from wear. The seal is designed to be a perfect match for the assembly groove so that it can’t be twisted or deformed when it is in use. The WP8 is mostly used in agricultural equipment and earth-moving machinery.
Material
Polyurethane
Operating Conditions
| Media | Mineral oils |
| Speed | ≦1 m/s |
| Temperature Range | -40°C , +100°C |
Surface Roughness
| Sliding Surface | Groove Base | Groove Flanks | |
| Ra | 0.2~0.4 µm | ≦0.8 µm | ≦3.2 µm |
| Rz | 0.8~1.6 µm | ≦3.2 µm | ≦12.5 µm |
