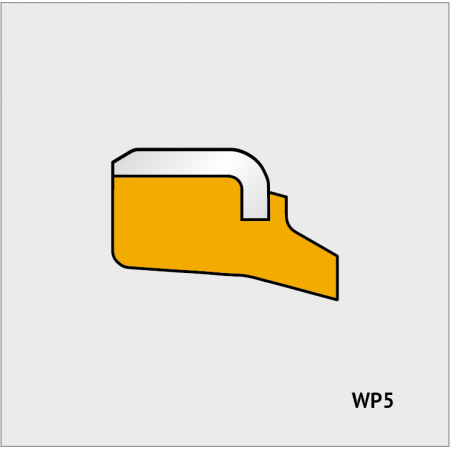

WP5 Wiper Seals
| Item No.: | WP5 |
Supplier Details
Country: Taiwan
City: Nantou County
Address: No. 336, Gongye Rd., Nantou City
TEL: +886-49-2255011
Fax: +886-49-2250035
Online Showroom:
47 Products
Product Description
The WP5 Wiper Seal is a one-way seal made of polyurethane and metal parts. It combines a polyurethane seal with metal parts. The outer wiping lip allows it to follow the side movement of the rod and to clear away dirt, contaminants, and moisture. The WP5 Wiper Seal forms an oil film on the piston rod to protect it from oxidation. The WP5 Wiper Seal is mostly used in agricultural equipment and earth-moving machinery.
Material
Polyurethane
Operating Conditions
Surface Roughness
The WP5 Wiper Seal is a one-way seal made of polyurethane and metal parts. It combines a polyurethane seal with metal parts. The outer wiping lip allows it to follow the side movement of the rod and to clear away dirt, contaminants, and moisture. The WP5 Wiper Seal forms an oil film on the piston rod to protect it from oxidation. The WP5 Wiper Seal is mostly used in agricultural equipment and earth-moving machinery.
Material
Polyurethane
Operating Conditions
| Media | Mineral oils |
| Speed | ≦1 m/s |
| Temperature Range | -40°C , +100°C |
Surface Roughness
| Sliding Surface | Groove Base | Groove Flanks | |
| Ra | 0.2~0.4 µm | ≦3.2 µm | ≦3.2 µm |
| Rz | 0.8~1.6 µm | ≦12.5 µm | ≦12.5 µm |
