WP32 Wiper Seals - WP32

WP32 Wiper Seals

Item No.: WP32
Supplier Details
NAK Sealing Technologies Corporation
Country: Taiwan
City: Nantou County
Address: No. 336, Gongye Rd., Nantou City
TEL: +886-49-2255011
Fax: +886-49-2250035
Online Showroom: 47 Products
Product Description

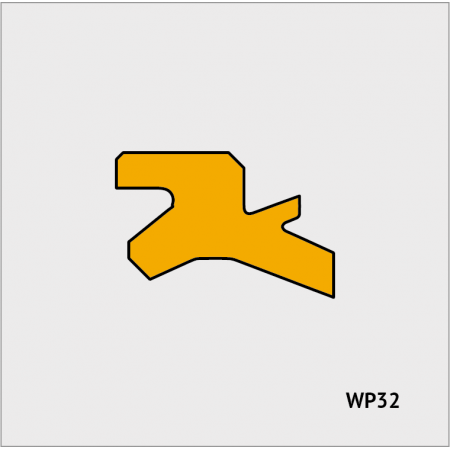

The WP32 Wiper Seal has two separate scraper lips. The seal is a static seal that is installed in a hydraulic cylinder. The outer diameter prevents pollutants from entering into the cylinder. This seal also causes an oil film to form on the hydraulic rod. This helps protect the rod and prolongs the service life of the hydraulic cylinder. The WP32 Wiper Seal is mostly used in agricultural equipment and earth-moving machinery.

Material
Polyurethane

Operating Conditions
Media Mineral oils
Speed ≦1 m/s
Temperature Range -40°C , +100°C

Surface Roughness
  Sliding Surface Groove Base Groove Flanks
Ra 0.2~0.4 µm ≦0.8 µm ≦3.2 µm
Rz 0.8~1.6 µm ≦3.2 µm ≦12.5 µm
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

WP32 Wiper Seals

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
