WP3 Wiper Seals
| Item No.: | WP3 |
Supplier Details
Country: Taiwan
City: Nantou County
Address: No. 336, Gongye Rd., Nantou City
TEL: +886-49-2255011
Fax: +886-49-2250035
Online Showroom:
47 Products
Product Description

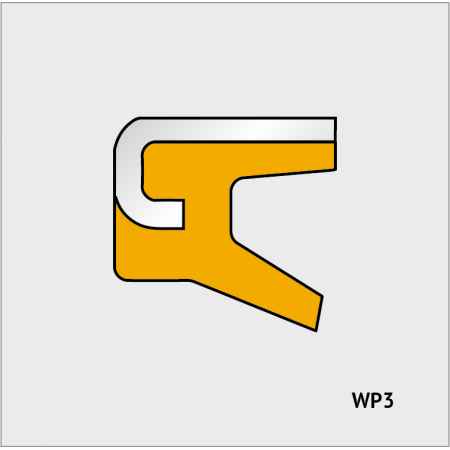

The WP3 Wiper Seals are a one-way seal made of polyurethane and metal parts. It’s installed on the outer edge of an open groove. The seal is designed to be a perfect counterpart to the setting, providing a secure placement to ensure an excellent dust-proofing function. The WP3 Wiper Seal is mostly used in light, medium and heavy duty applications.
Material
Polyurethane
Operating Conditions
Surface Roughness
The WP3 Wiper Seals are a one-way seal made of polyurethane and metal parts. It’s installed on the outer edge of an open groove. The seal is designed to be a perfect counterpart to the setting, providing a secure placement to ensure an excellent dust-proofing function. The WP3 Wiper Seal is mostly used in light, medium and heavy duty applications.
Material
Polyurethane
Operating Conditions
| Media | Mineral oils |
| Speed | ≦1 m/s |
| Temperature Range | -40°C , +100°C |
Surface Roughness
| Sliding Surface | Groove Base | Groove Flanks | |
| Ra | 0.2~0.4 µm | ≦3.2 µm | ≦3.2 µm |
| Rz | 0.8~1.6 µm | ≦12.5 µm | ≦12.5 µm |
