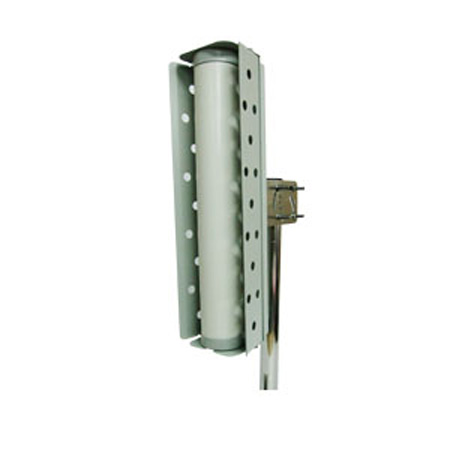

Wireless Sector Antenna - AT-SE581621C-NF

Wireless Sector Antenna

Item No.: AT-SE581621C-NF
Supplier Details
Country: Taiwan
City: Taipei City
Address: 1.No.6, Ln.18, Mincyuan E.Rd., Nu Dist.
TEL: +886-2-87922356
Fax: +886-2-87922546
Online Showroom: 42 Products
Applications:
1. 5.125 – 5.875 GHz
2. IEEE 802.11a
3. Directional and multipoint applications
4. WiMax, CDMA
5. Public Wireless Hotspot
6. Frequency Ultra-wide
7. Wireless LAN Systems
8. 802.11a WiFi Networks
9. 8.2.16 WiMax Networks

Features:
1. Superior performance
2. Good appearance designs
3. DC Short lightning protection
4. Installed for vertical or horizontal polarization
5. Behind and support is an aluminum
6. Support is up and down also to adjust
7. Outdoor antenna for public hot sports
8. Includes tilt and swivel mast mount brackets
9. RoHS compliant

Technical Specification:
Model No.AT-SE581621C-NF
Frequency Range 5125 ~ 5875MHz
V.S.W.R.<= 1.5
Gain (dBi)16~21dBi
Return Loss>= -15dB
Antenna TypeCollinear
Impedance50Ω
PolarizationVertical
Horizontal Beam-with45°~120°
Vertical Beam-with
Maximum Power50W
ConnectorN - Female
Mechanical Specification:
Length760mm
Diameter110mm
Weight3500g
Wind Survival>150MPH
Radome MaterialUV-Polymer
Down-tilt0-20°
Temperature -40°C ~ +80°C
RoHS CompliantYes
