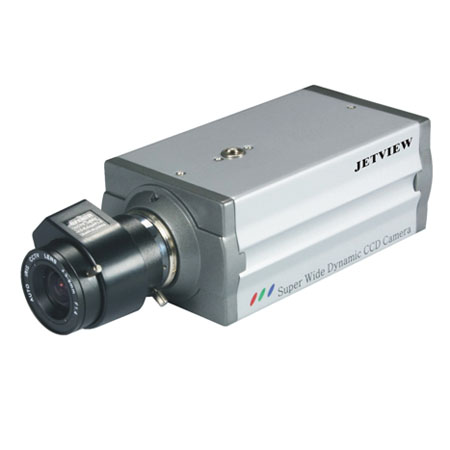

WDR Camera - B1 Series

WDR Camera

Item No.: B1 Series
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654
Online Showroom: 57 Products
Key Features:
* WDR(SS III)
* Resolution: 540TVL
* Minimum Illumination: 0.005Lux/F1.2( Slow Shutter)
* With IR Cut Filter
* OSD Menu
* Privacy Masking Function

Specification
ModelJW-1SB1PZ
JV-1SB1NZ
Image Sensor1/3'' Sony (SS III)
Signal SystemPAL/NTSC
Effective PixelsPAL: 752(H)×582(V)
NTSC: 768(H)×494(V)
ResolutionHorizontal Resolution: 540TVL; Vertical Resolution: 400TVL
Minimum Illumination0.005Lux/F1.4(Color); 0.0045Lux/1.4(B/W); Slow Shutter
S/N RadiationMore than 50dB
Dynamic Range128X(43dB)
Control MethodOSD Menu
White BalanceAWB/Compulsive/Manual(Optional)
Electronic Shutter SpeedAuto: 1/50~100,000Sec. (PAL), 1/60~100,000Sec. (NTSC)
Slowly: PAL: 0.02 Sec-3.02Sec; NTSC: 1/30 Sec-3Sec
AGCMini/Normal/Max. (Adjustable)
Day/Night ModeAuto/Manual/Outer Controller
Video OutputBNC 1.0Vp-p, 75Ohm
Gamma CorrectionMode 1/Mode 2(Adjustable)
Synchronization SystemInternal/L.L.
Lens MountC/CS
Auto IrisDC
Power SupplyDC12V/AC 24V
Power ConsumptionLess than 4W
Digital Zoom2.6X
BLCFixed/AUTO/Mode1/Mode 2
Privacy Shlter8PCS(Max.)
Electronic Shutter ControlON/OFF(Optional)
Remote ControlPelco-D/Pelco-P
Operation Condition -15℃~55℃, RH85% (Max.)
Weight500G
Product Dimension67.5 x 50 x 115mm (L×W×H)
