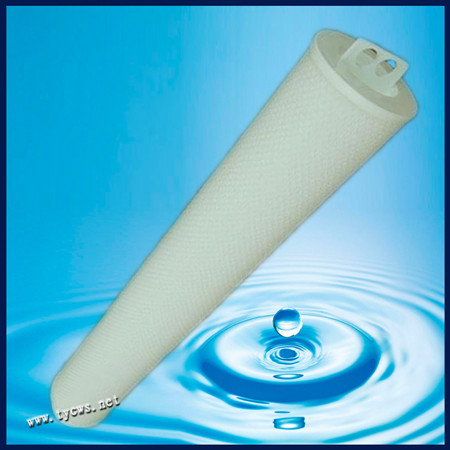

Different filters are used in water treatment, high flow filter cartridge is one of frequently-used fitlers.
it has a 6 inch/152mm large diameter, and is coreless, single open-ended with an inside to outside flow pattern.The large diameter with big filter area insures to reduce the number of filter cartridges and the dimention of housing required..The long service life and high flowrate result in low investment and less manpower  in many applications
Gradient pore structure
Up to 110M3/H flowrate per filter cartridge for water filtration.
Maximum 50% reduction of filter system
20.69 inch /525mm,40.69inch/1033mm and 60.69 inch/1541mm lengths are available
All contaminants can be removed within the cartridge because of the flow direction.

Technical  Specifications

Materials of Components
*Filter media: Pleated  glass fiber:Pleated depth Polypropylene(PP),or Melt blown PP
*Support/Drainage: Polypropylene(PP)
*End caps:Glass fiber reinforced Polypropylene
*O-ring seal:EPDM, NBR

Removal Ratings
1um, 4.5um, 6um, 10um,20um,40um,70um,100um

Outside Diameter: 6 inch(152mm)

Length:  20.69 inch(525mm)/ 40.69 inch(1033mm)/ 60.69 inch(1541mm)

Operating Conditions
*Maximum Operating Temperature:
*Pleated glass fiber:121centigrade
*Pleated PP: 82centigrade
*Melt Blown PP: 65centigrade
*Maximum Differential Pressure: Pleated glass fiber:3.4bar at 121centigrade
*Pleated PP: 3.4Bar at 82centigrade
*Melt Blown:1.03Bar at 65centigrade
*Recommended Change out Differential Pressure:2.4Bar at 20centigrade
*Suggested maximum Flow of water: 20.69 inch length:660LPM;  40.69 inch length:1,300LPM;  60.69 inch length:1,900LPM.

Applications
Prefiltration of RO,Pretreatment of sea water desalination
Condensate water filtration,hot water recovery in power generation
API, solvents,and water filtration in BioPharm market
The filtration of bottled water, high Fructose,edible oil,soft drinks,and milk
Paints and coatings,Petrochemical,Refineries
Microelectronics,film,fiber and resin

Part Numbers/Ordering Information
Darlly Hi-Flowment Filter cartridge P/N:
DLHF6* # = + (e.g., DLHF660PP20E)

Code *   Cartridge Length(inch/mm)                            Code #     Media Type
20           20.69/525                                                              PP       PP Pleated
40           40.69/1033                                                            PM      PP Melt Blown
60           60.69/1541                                                            GF       Pleated glass fiber

Code =   Removal Rating                                                Code +  O-ring material
1             1um                                                                       E        EPDM
4.5         4.5um                                                                     B        Buna N
6             6um
10          10um
20          20um
40          40um
70          70um
100        100um
