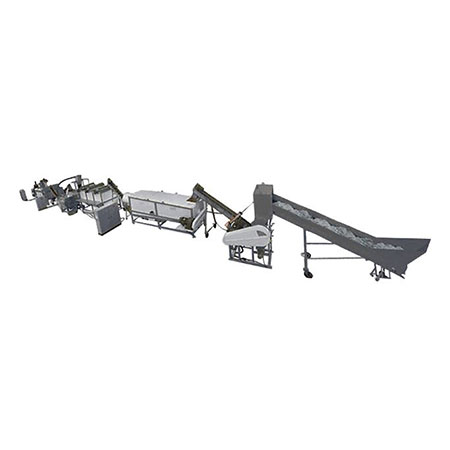

Washing/Recycling Plants for Film
Beginning with the feeding and up to the finished product - the modular GENIUS wash plants process dirty plastics easily! Agricultural films, packing films, etc. are processed here step-by-step.
  • Belt conveyor: to have a stable flow of quantity input, and minimize the labor cost, with metal detection optional.
  • Wet-granulator: Wet type crusher can wash plastics preliminary to improve crushing efficiency and air-pollution by dust during crushing. Pre-shredders or hydraulic cutting machines are available for size reduction systems.
  • Screw conveyor: to eliminate dusts, depending on the level of contamination.
  • High speed friction washer: the device is equipped with water injection nozzles which spray the fresh water or recycled water directly at the screen cage to assist in screen cage cleaning and prevent clogging.
  • Sink-float tank: Sink-Float Tanks separate different types of plastics by density, using sink-float principle. The heavier plastic fraction sink to the bottom of the tank whilst the lighter fractions float to the surface.
  • After materials come out from the sink-float tank usually retains 80% or more of moisture. The screw press dryer helps reducing excess moisture and the volume of the recycled material, increasing the quality and efficiency of granulation.
  • Jumbo bag station for storage.
  • Control panel.
