Wall Plate Extender

Item No.:

HWX01

Supplier Details

Country: Taiwan

City: New Taipei City 23144

Address: 7F-7, No.94, Baozhong Road, Xindian District

TEL: +886-2-29160823

Fax: +886-2-29160841

Online Showroom: 63 Products

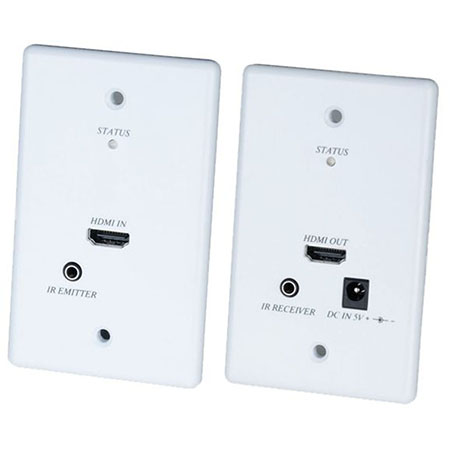

Wall Plate HDMI & IR CAT5 Extender

Extends HDMI and IR signal over two CAT5/5e/6 cables.
Transmission range up to 60 meters.
Support high resolution up to 1080p.
Built in auto EQ function, no need to do any adjustment for different range.
Fully HDCP compliant.
HDMI 1.3a compatible, HDCP 1.1, support DDC, EDID, CEC, Hot Plug Detect.
Built in IR repeater function, could be control the source devices from remote side.
Receiver unit power could be sending from PCB inside 5V terminal or external 5V DC Jack.
Package includes: transmitter and receiver unit, one external power adapter, IR emitter cable and IR receiver cable. (1.8 meters (6 ft))
