Wall Mounted Boiler - SD18, 24-B4

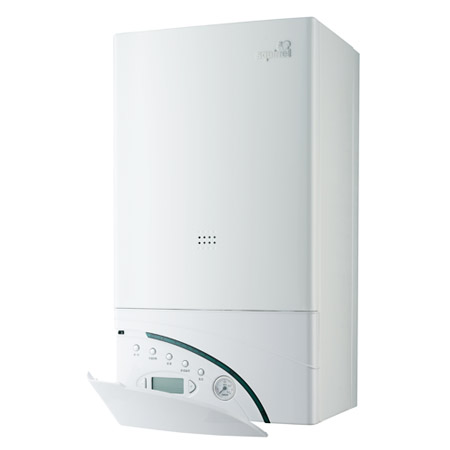

Wall Mounted Boiler

Item No.: SD18, 24-B4
Supplier Details
Country: China
City:
Address:
TEL: +--
Fax: +--
Online Showroom: 57 Products
Features & Benifits

* Large LCD displays temperature and operating status under CH and DHW mode

* 18 protective functions ensure maximum reliability

* Floor heating mode with 60℃ temp limit protection

* Energy saving and comfortable mode available to cater for different needs.

* Magnetic filtering devices ensure normal operation in bad quality area

Technical Data
Model SD18-B1SD24-B1Unit
Gas TypeNG, LPG, Town Gas
Dimension(L*H*W)725X403X325725X403X325mm
C.H. System
Nominal heat input2026.3KW
Nominal heat output18.424.1KW
Heat Efficiency 91.891.8%
CH System Working Pressure0.05~0.3Mpa
Max. Heating Temperature 90
Adjustable CH flow Temp.range 40~85(Floor heating 35~60)
Power 220V/50Hz220V/50Hz
Protection ClassIPX4DIPX4D
Expansion Vessel Volume88L
Expansion Vessel Pre-charge Pressure0.10.1Mpa
Heating Area(For reference only) 60~15060~220M2
Applicable Water Tap Number12
NWT(boiler only) 3638kgs
Dimension(L*H*W)725*403*325725*403*325mm
DHW System
Max. Working Pressure 0.6Mpa
Min. Working Pressure 0.03Mpa
Continuous DHW Production △T=25℃ 10.313.6kg/min
Adjustable DHW flow Temp.range  (±3℃) 35~60
Min DHW flow2.5kg/min
DHW limited flow rate7.310kg/min
Gas Pressure
Natural Gas 20002000Pa
LPG28002800Pa
Connection
CH water outlet3/4"
DHW inlet3/4"
DHW outlet1/2"
Cold water inlet1/2"
Gas inlet3/4"
Pump delivery height5m

We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Wall Mounted Boiler

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
