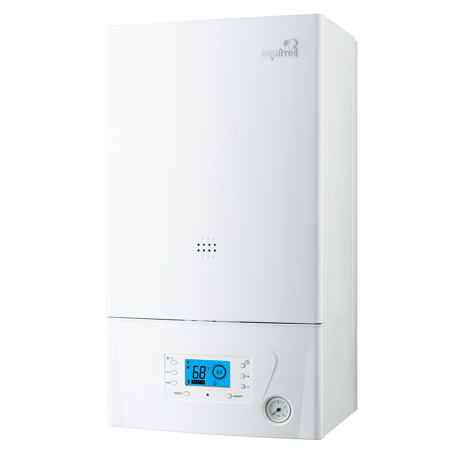

Wall Mounted Boiler - SP18,24–B2

Wall Mounted Boiler

Item No.: SP18,24–B2
Supplier Details
Country: China
City:
Address:
TEL: +--
Fax: +--
Online Showroom: 57 Products

Features & Benifits

* Fashionable LCD display

* Weekly timing and temperature setting program

* 18 protective functions

* Floor heating mode with 60℃ temp limit protection

* Energy saving and comfort modes available for different needs.

* Magnetic filtering devices ensure normal operation in bad quality area.



Technical Data

Model

SP18-B2

SP24-B2

Unit

Gas Type

NG, LPG, Town Gas



Dimension(L*H*W)

725X403X325

725X403X325

mm

C.H. System

Nominal heat input

20

26.3

KW

Nominal heat output

18.4

23.7

KW

Min.input for CH

8.5

11.2

KW

Min.output for CH

7.1

9.3

KW

Heat Efficiency

90.1

90.1

%

CH System Working Pressure

0.05~0.3

Mpa

Max. Heating Temperature

90

Adjustable CH flow Temp.range

40~85(Floor heating 35~60)

Power supply

220V/50Hz

220V/50Hz



Protection Class

IPX4D

IPX4D



Expansion Vessel Volume

8

8

L

Expansion Vessel Pre-charge Pressure

0.1

0.1

Mpa

Heating Area(For reference only)

60~150

60~220

M2

Applicable Water Tap Number

1

2



NWT(boiler only)

36

38

kgs

DHW System

Max. Working Pressure

0.6

Mpa

Min. Working Pressure

0.03

Mpa

Continuous DHW Production △T=25℃

10.3

13.6

kg/min

Adjustable DHW flow Temp.range  (±3℃)

35~60

Min DHW flow

2.5

kg/min

DHW limited flow rate

7.3

10

kg/min

Gas Pressure

Natural Gas

2000

2000

Pa

LPG

2800

2800

Pa

Connection

CH water outlet

3/4"



DHW inlet

3/4"



DHW outlet

1/2"



Cold water inlet

1/2"



Gas inlet

3/4"



Pump delivery height

5/6(adjustable)

m

Flue length

1~4.25(90ºbend=0.85M straight pipe, if the pipe is less than 1m, flow regulator is needed)

m

We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Wall Mounted Boiler

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
