VFD 20X2 Customer Display

Introduction:

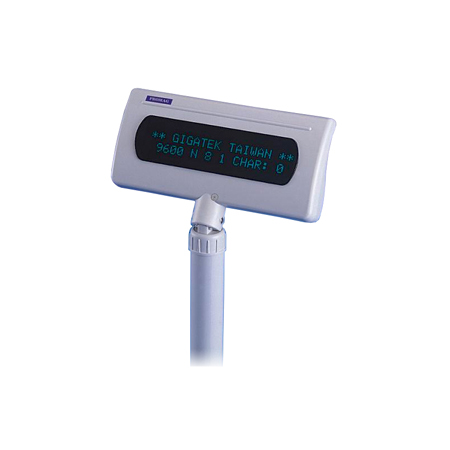

DSP800 Customer Display is an artistic design POS system peripheral device. Available in serial Interface or Parallel Interface. It is for use with ECR, POS system to display the purchased prices and the amount of change to customers. Also it is capable to display the advertising message.

Features:
· Display up to 40 characters (20 columns x 2 lines).
· Large font (9.2 x 6.4 mm) is easy to read.
· The blue-green display color is gentle to the eyes.
· The display panel is adjustable to provide the best viewing angle up to 30 degrees.
· The support pole is adjustable to provide the best system installation. (Height adjusted from 380mm to 550mm)
· Provides good general utilities:
 ≯User-defined messages can be down loaded.
 ≯International character sets.
 ≯Advertising message running.
· Provides an interface based on RS-232C, with baud rates selectable from 600 to 19200 BPS.
· Provide a parallel port 25 pin D-sub male connector for parallel interface model.

Specifications:

Display	Vacuum fluorescent display (VFD)
Number of characters	40 (20 columns x 2 lines)
Display color	Blue-green
Character font	5 x 7 dot matrix
Character Size	H9.2 x W6.4 mm
Character type	Alpha numeric: 95 International characters: 32 Graphic characters: 128
Character pitch	8.3 mm
View area	H22.4 x W164.1mm
Power supply	12V DC 350mA
Dimension	Display: H110 x W230 x D45 mm Base: H12 mm with 80 mm diameter
Support pole	High foot: 270 to 440 mm adjustable with diameter 38 mm Low foot: 35 mm Upside-down mounting versions
Tilt angle	30 degree MAX
Horizontal rotation	360 degree
Weight	Approx. 800 grams
Interface	Serial interface model: RS-232C with 9 pin D-sub female connector Parallel interface model: Parallel with 25 pin D-sub male connector
Operating temperature	0 ~ 55° C

※ Specification is subject to change without notice.
