Napkin Paper Machine - AN-33209~33217/2D~4D

Napkin Paper Machine

Item No.: AN-33209~33217/2D~4D
Supplier Details
A-NEW Industrial Co. Ltd.
Country: Taiwan
City: New Taipei City 24257
Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.
TEL: +886-2-29085266
Fax: +886-2-29086355
Online Showroom: 51 Products

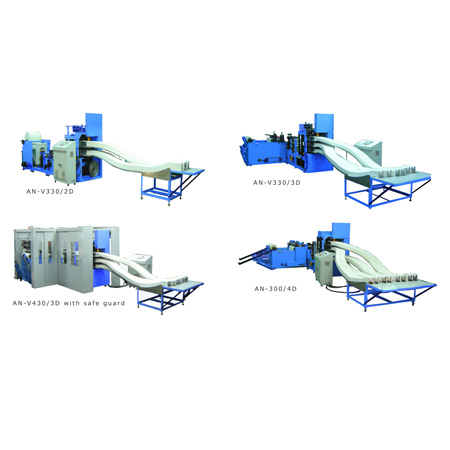

Vertical Rotary Type Npakin Machine, 2/3/4 decks output, 1 folder head

Model No.

AN-33209~33212/2D~4D

AN-33213~33217/2D~3D

Sheet size (mm)

230 x 230 ~ 250 x 250

280 x 280 ~ 300 x 300

330 x 330 ~ 350 x 350 ~ 380 x 380

400 x 400 ~ 430 x 430

Folding shape

1/4-fold

1/4-fold

Folded size (mm)

115 x 115 ~ 125 x 125

140 x 140 ~ 150 x 150

165 x 165 ~ 175 x 175 ~ 190 x 190

200 x 200 ~ 215 x 215

Speed

1600~2400 / 2400~3600 / 3200~4800

900~1200 / 1800~2400

Converting web

1~3 ply napkin paper

Jumbo roll width

460mm / 690mm / 920mm

500 mm / 750mm / 1000mm

560mm / 840mm / 1120mm
600mm / 900mm / 1200mm

660mm / 990mm

700mm / 1050mm

760mm / 1140mm

800mm / 1200mm

860mm / 1290mm

Jumbo roll dia.

Max. 1500mm φ

Jumbo roll core dia.

76.2mm (3")

Machine character:
  1. 2~4 decks output.
  2. With vertical folder.
  3. With one unit embossing device: Rubber/Steel roller.
  4. With 1 set of slitting device.
  5. With band knife auto grinding device ( have manual option) match with new type of high speed band saw design.
  6. Web tension control by manual.
  7. With driving belt for jumbo roll, control by preumatic.
  8. With one set of air lifter for jumbo roll.
  9. With inching.
  10. With auto slow down device before jumbo roll used-up gradually.
  11. With protector for paper break.
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Napkin Paper Machine

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
