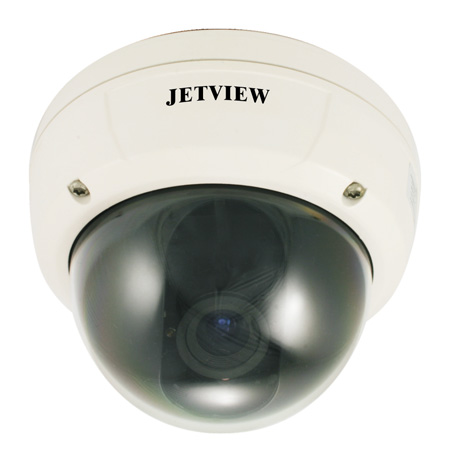

Vandal Proof Camera
Item No.: | X7 Series-JV-1AX7PZ |
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654

Online Showroom:
57 Products
Key Features:
* Sony Super HAD II
* Resolution: 520TVL/540TVL
* Water-Proof: IP66
* Operation Temperature: -20℃~65℃
* With IR Cut Filter
* Vandal-proof
* 3-Axis
Specification
* Sony Super HAD II
* Resolution: 520TVL/540TVL
* Water-Proof: IP66
* Operation Temperature: -20℃~65℃
* With IR Cut Filter
* Vandal-proof
* 3-Axis
Specification
Model | JV-1AX7PZ | JV-1AX7NZ |
Image Sensor | 1/3" Sony Super HAD II | |
Signal System | PAL/NTSC | |
Effective Pixels | PAL: 752(H)×582(V) | |
NTSC: 768(H)×494(V) | ||
Horizontal Resolution | 520TVL | 540TVL |
Minimum Illumination | 0.03Lux/F1.2 | |
Synchronization System | Internal | |
Day/Night Switch | Automatic | |
S/N Radiation | More than 50dB | |
Electronic Shutter Speed | 1/50~100,000Sec. (PAL), 1/60~100,000Sec. (NTSC) | |
White Balance | Automatic | |
Video Output | BNC 1.0Vp-p, 75Ohm | |
Lens | 4-9mm, 2.8-12mm (optional) | |
Power Supply | DC12V | |
Current Consumption | 200mA(Max.) | |
Operation Condition | -20℃~65℃, RH85% (Max.) | |
Material of Boday | vandal-proof | |
Waterproof | IP66 | |
Net Weight | 900G | |
Gross Weight | 1100G | |
Product Dimension | 135 x 98mm (D x H) | |
Pckage Dimension | mm (L×W×H) |
