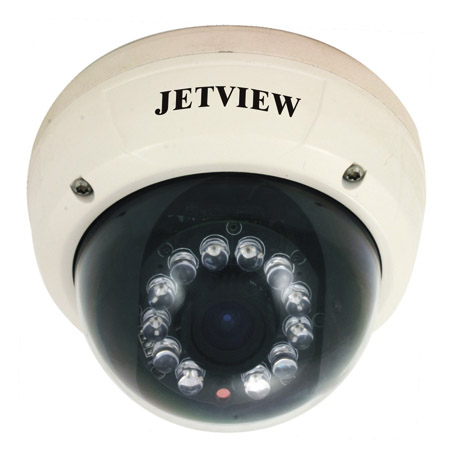

Vandal Proof Camera
Item No.: | JV-1CX7PD/ JV-1CX7ND |
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654

Online Showroom:
57 Products
Key Features:
* 1/3" Sony Super HAD II
* Resolution: 420TVL
* IR Radiation Range: 20-25m
* Water-Proof: IP66
* Operation Temperature: -20℃~65℃
* With IR Cut Filter
* Vandal-proof
* 3-Axis
Specification
* 1/3" Sony Super HAD II
* Resolution: 420TVL
* IR Radiation Range: 20-25m
* Water-Proof: IP66
* Operation Temperature: -20℃~65℃
* With IR Cut Filter
* Vandal-proof
* 3-Axis
Specification
Model | JV-1CX7PD | |
JV-1CX7ND | ||
Image Sensor | 1/3" Sony Super HAD II | |
Signal System | PAL/NTSC | |
Effective Pixels | PAL: 500(H)×582(V) | |
NTSC: 510(H)×492(V) | ||
Horizontal Resolution | 420TVL | |
Minimum Illumination | 0.01Lux/F1.2 | |
Synchronization System | Internal | |
Day/Night Switch | Automatic | |
Infrared Led Wavelength | 850nm | |
Infrared Effective Range | 25m | |
Infrared Led | ∮8, 12PCS | |
S/N Radiation | More than 50dB | |
Electronic Shutter Speed | 1/50~100,000Sec. (PAL), 1/60~100,000Sec. (NTSC) | |
White Balance | Automatic | |
Video Output | BNC 1.0Vp-p, 75Ohm | |
Lens | 4-9mm, 2.8-12mm (optional) | |
Power Supply | DC12V | |
Current Consumption | 175mA(Max.)+225mA(Max. when led is on) | |
Operation Condition | -20℃~65℃, RH85% (Max.) | |
Material of Boday | Vandal-proof | |
Waterproof | IP66 | |
Net Weight | 900G | |
Gross Weight | 1100G | |
Product Dimension | 135 x 98mm (D x H) | |
Pckage Dimension | mm (L×W×H) |
