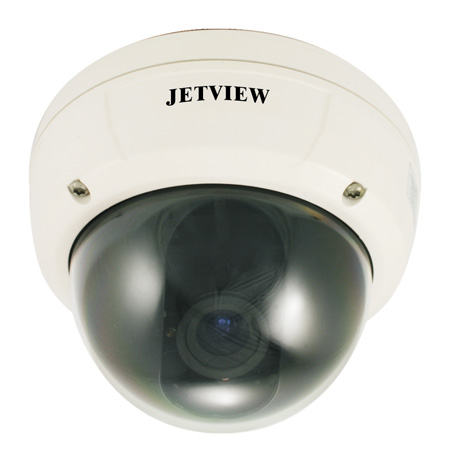

Vandal Proof Camera
Item No.: | X7 Series |
Supplier Details
Country: China
City:
Address:
TEL: +86-12-123456
Fax: +86-16-23654
Online Showroom:
57 Products
Key Features:
* Sony Super HAD
* Resolution: 420TVL
* Water-Proof: IP66
* Operation Temperature: -20℃~65℃
* With IR Cut Filter
* Vandal-proof
* 3-Axis
Specification
* Sony Super HAD
* Resolution: 420TVL
* Water-Proof: IP66
* Operation Temperature: -20℃~65℃
* With IR Cut Filter
* Vandal-proof
* 3-Axis
Specification
Model | JV-1MX7PZ |
JV-1MX7NZ | |
Image Sensor | 1/3" Sony Super HAD |
Signal System | PAL/NTSC |
Effective Pixels | PAL: 500(H)×582(V) |
NTSC: 510(H)×492(V) | |
Horizontal Resolution | 420TVL |
Minimum Illumination | 0.5Lux/F1.2 |
Synchronization System | Internal |
Day/Night Switch | Automatic |
S/N Radiation | More than 48dB |
Electronic Shutter Speed | 1/50~100,000Sec. (PAL), 1/60~100,000Sec. (NTSC) |
White Balance | Automatic |
Video Output | BNC 1.0Vp-p, 75Ohm |
Lens | 4-9mm, 2.8-12mm (optional) |
Power Supply | DC12V |
Current Consumption | 200mA(Max.) |
Operation Condition | -20℃~65℃, RH85% (Max.) |
Material of Boday | vandal-proof |
Waterproof | IP66 |
Net Weight | 900G |
Gross Weight | 1100G |
Product Dimension | 135 x 98mm (D x H) |
Pckage Dimension | mm (L×W×H) |
