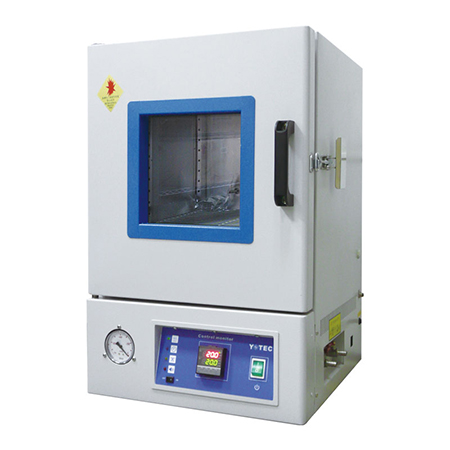

Vacuum Oven - DOV-30N/DOV-40N/DOV-60N

Vacuum Oven

Item No.: DOV-30N/DOV-40N/DOV-60N
Supplier Details
Country: Taiwan
City: New Taipei City
Address: 6F.-10, No. 14, Ln. 609, Sec. 5, Chongyang Rd., Sanchong Dist.
TEL: +886-3-5368830
Fax: +886-3-5368891
Online Showroom: 101 Products
Vacuum Oven
【Origin】
Taiwan

【Function and Feature】
  1. Heating Shutdown timer.
  2. Over heat buzzer alarm feature.
  3. Temperature correction.
  4. Over heat power shutdown.
  5. Heating power percentage adjustment.
  6. Precision temperature control with resolution of 0.1°C.
  7. Digital direct reading display, easy to operate temperature control.
  8. Large clear tempered glass, object easy to observe.
  9. Material:Stainless steel inlet.
  10. Temperature Range: Room temperature+5°C ~ 200°C.
  11. Vacuum:1 torr.
  12. Vacuum Gauge:Dial meter 0~76 cmHg.

【Accessories】
  1. Exhaust and inlet needle valve.

【Optional】
  1. Vacuum controller.
  2. Multi-stage programmed control gauge.
  3. PID 2-time over heat protection.
  4. Vacuum pump oil adverse current prevention device.
  5. RS232/RS485 computer connection interface.
  6. 200℃ above specifications.

【Specs】


【Note】
  • Customizable.
  • DOV-60N/220V/27A must be connected to a breaker.
  • Operating temperature over 230°C is recommended to install water cooling system.
  • Photos are for references only.
