UV Quartz Sleeve
| Item No.: | Quartz cooling Tube |
Supplier Details
Country: Taiwan
City: New Taipei City 239016
Address: No. 59-7, Ln. 156, Jhongjheng 3rd Rd., Yingge Dist.
TEL: +886-2-86780399
Fax: +886-2-86780396
Online Showroom:
45 Products

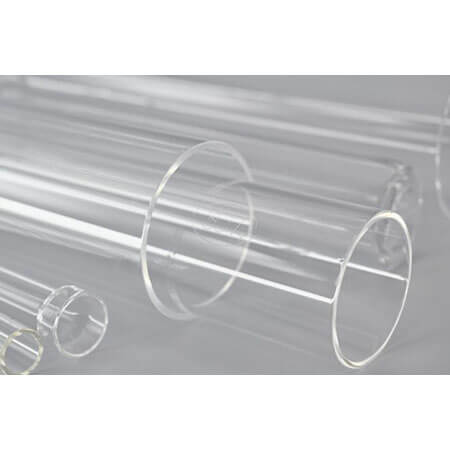

Quartz cooling Tube
Technical Data
Quartz sleeves as water jacket (cooling tubes) for UV lamps can vary in size, diameter and configuration from system to system. Lamps are also manufactured utilizing different types of quartz to block or allow UV transmission in various spectral range.
Water Cooling tubes are mounted between the UV lamp and substrate in a UV curing system, to filter out infrared (IR) radiation and prevent the system and the substrate from overheating, whilst allowing the majority of UV radiation to pass through. They are kept cool with the addition of air or water being pumped through on a system that passes through a chiller.
Cooling tubes are various different sizes depending on the size and manufacturer of the system, and GCTC provide you with a wide range of lengths and diameters of cooling tube, manufactured to exact dimensions from high grade quartz.
GCTC keep the most in using quartz water jacket in stocks to offer the better service especially for PCB manufactured system which demanding customize dimensions and shapes to perfectly fitted into their systems.
