UV Integrator
| Item No.: | UV-Integrator I |
Supplier Details
Country: Taiwan
City: New Taipei City 239016
Address: No. 59-7, Ln. 156, Jhongjheng 3rd Rd., Yingge Dist.
TEL: +886-2-86780399
Fax: +886-2-86780396
Online Showroom:
45 Products
UV Meter
Technical Data
The visible light is only a small part of the electromagnetic radiation, the short-wave still visible light appears to us to be violet. When the wave-lengths are even shorter then we cannot see the radiation anymore, we are then within the range of the ultraviolet radiation approx. 254-380Nm. There are different UV rays: UV-A 318-380Nm UV-B 280-315Nm UV-C 254-280Nm

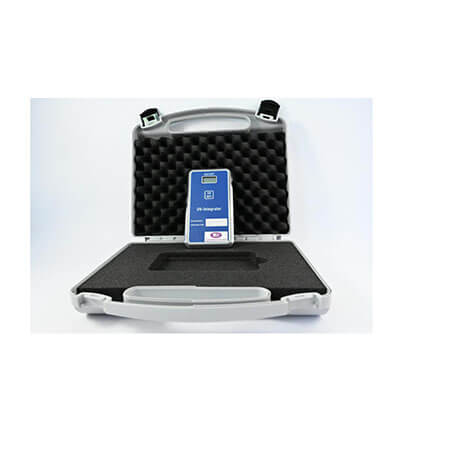

UV-Integrator I is intended for measuring the UV capacity of exposure installations. A measuring head is located at the area of the unit records UV emission in the spectrum range between 250~410Nm. The measurement can be ready directly on the LCD in mJ/cm², the I type is operated with a 3.6V lithium battery located inside the unit. By using special energy-saving circuits the battery will last for approx. 10000 hours and special filter glasses absorb the visible as well as the infrared range of emission s that measuring is only done in the spectral range required.
Technical Data
- Display : 6-digit LCD display, 0~999999mJ/cm2
- Measuring range: 0-5000mW/cm²
- Dimensions: 80W*145L*12T(mm)
- Weight: 500g
- Operating temperature: 0-50℃
- Measuring spectral range: 250-410Nm
- Casing: Aluminum chrome with stainless steel cover.
The visible light is only a small part of the electromagnetic radiation, the short-wave still visible light appears to us to be violet. When the wave-lengths are even shorter then we cannot see the radiation anymore, we are then within the range of the ultraviolet radiation approx. 254-380Nm. There are different UV rays: UV-A 318-380Nm UV-B 280-315Nm UV-C 254-280Nm
UV-Integrator I is intended for measuring the UV capacity of exposure installations. A measuring head is located at the area of the unit records UV emission in the spectrum range between 250~410Nm. The measurement can be ready directly on the LCD in mJ/cm², the I type is operated with a 3.6V lithium battery located inside the unit. By using special energy-saving circuits the battery will last for approx. 10000 hours and special filter glasses absorb the visible as well as the infrared range of emission s that measuring is only done in the spectral range required.
