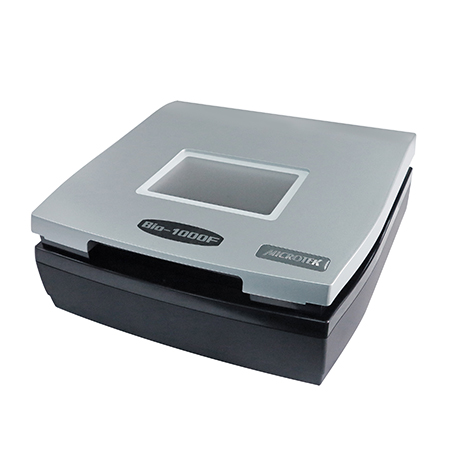

UV Gel Imager
| Item No.: | 5-3, Bio-1000F |
Supplier Details
Country: Taiwan
City: Hsinchu City 30075
Address: No. 6, Industry East Road 3, Science Based Industrial Park
TEL: +886-3-5772155
Fax: +886-3-5772598
Online Showroom:
55 Products
Fluorescence Professional Gel Imager
Gel Imager for EtBr-alternative Stain with High Sensitivity
Bio-1000F is an innovative, user-friendly, and cost-effective device that integrates image capture, gel preview, and gel extraction essential for routine nucleic acid gel electrophoresis. With the combination of high-sensitivity CCD system and Blue-LED illuminators, Bio-1000F is compatible with all EtBr-alternative fluorescent stain and provides the publication-quality image up to 0.008 ng/μl, significantly enhancing the fluorescent signal expression over other gel documentation systems dependent on UV and Blue-LED light sources.
Incorporating removable filter plate and intuitive MiBioFluo software interface, users can visualize banding pattern and conduct gel extraction directly on Bio-1000F for more convenient operation without movement between trans-illuminator and gel imager. The compact design especially enables Bio-1000F fit in crowded laboratory space.
Bio-1000F features an integrated, environmental friendly, and ultra-sensitive gel imager for researchers, dedicating to improve the laboratory safety and gel electrophoresis process efficiency.
Features
Specifications
Optical Resolution： 600 dpi
Image Sensor Type： CCD
Light Source： Blue LED (Ex/Em wavelength : 460~490 nm / 520 nm~)
Color Modes： 8-bit/16-bit grayscale
Bit-Depth： 16-bit grayscale
Scanning Area： 7" x 5" (177.8 mm x 127 mm)
Sensitivity： 0.008 ng/μl
Dimensions (LxWxH)： 12" x 12" x 5" (304.8 x 304.8 x 127 mm)
Weight： 4.8 kg
OS Support： Windows
Gel Imager for EtBr-alternative Stain with High Sensitivity
Bio-1000F is an innovative, user-friendly, and cost-effective device that integrates image capture, gel preview, and gel extraction essential for routine nucleic acid gel electrophoresis. With the combination of high-sensitivity CCD system and Blue-LED illuminators, Bio-1000F is compatible with all EtBr-alternative fluorescent stain and provides the publication-quality image up to 0.008 ng/μl, significantly enhancing the fluorescent signal expression over other gel documentation systems dependent on UV and Blue-LED light sources.
Incorporating removable filter plate and intuitive MiBioFluo software interface, users can visualize banding pattern and conduct gel extraction directly on Bio-1000F for more convenient operation without movement between trans-illuminator and gel imager. The compact design especially enables Bio-1000F fit in crowded laboratory space.
Bio-1000F features an integrated, environmental friendly, and ultra-sensitive gel imager for researchers, dedicating to improve the laboratory safety and gel electrophoresis process efficiency.
Features
- Fluorescence sensitivity up to 0.008 ng/μl and applicable to global
- Meets demands for trans-illuminating, imaging and gel extraction
- Convenient open-space for gel extraction
- Patented design with advanced image-capture skills
- Compact design to fit in crowded laboratory space
- Simple software brings effective results
Specifications
Optical Resolution： 600 dpi
Image Sensor Type： CCD
Light Source： Blue LED (Ex/Em wavelength : 460~490 nm / 520 nm~)
Color Modes： 8-bit/16-bit grayscale
Bit-Depth： 16-bit grayscale
Scanning Area： 7" x 5" (177.8 mm x 127 mm)
Sensitivity： 0.008 ng/μl
Dimensions (LxWxH)： 12" x 12" x 5" (304.8 x 304.8 x 127 mm)
Weight： 4.8 kg
OS Support： Windows
