UV Curing Lamp & Lamp Bases


Typical spectrum output of mercury lamp

Typical application: UV curing of inks and varnishes responsive to 365Nm wavelength.

Medium Pressure Mercury-Arc lamp
TYNGSHUOH TECH produces standard and custom UV Curing Lamps. Our production facility is designed to meet specific customer requirements to produce customized UV lamps, as well as achieve consistent quality in mass production. We design our own production machines with PLC program controller, we are able to optimize our manufacturing process. This results in precision filling technology making our lamps virtually free of impurities, thus preventing early blackening of the lamp. These lamps are components which may be used by customers to manufacture a variety of finished products.

BENEFITS

• Consistent quality for small or large quantity production
• Precise filling technology
• Optional reflective coating to shorten ignition warm up time

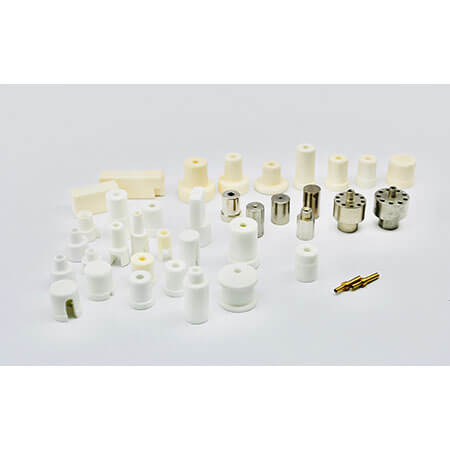

• Optional lamp base – ceramic & metal base with or without power cable along with different terminals.
• Arc length from 80mm up to 2000mm
• Outer diameter from 10mm up to 40mm
• Power density from 40W/cm up to 300W/cm

APPLICATIONS

• UV Curing of Solvent-Free Paints, Coatings, and Adhesives
• Industrial Photochemistry
• Special Applications Such as Ozone Production and UV Analysis
