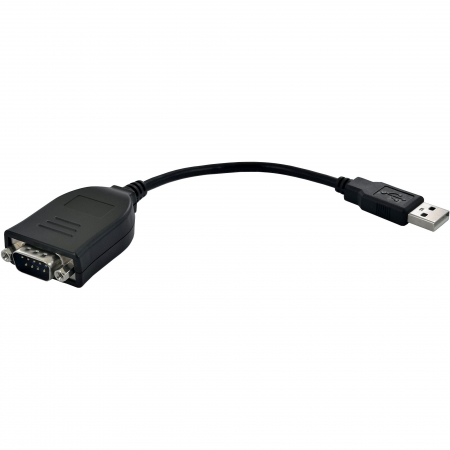

The US232 USB-to-RS232 serial port converter is the ideal accessory for laptop and desktop computers that do not have a COM or DB9 serial port. Supporting Windows, Mac, Linux, and Android for rapid performance, it is a convenient connectivity solution for industrial automation systems, scientific instruments, point of sale systems, and other specialized industrial and consumer applications.

Specifications:


FTDI Chip Support Remote wake-up and Smart Power Saving simultaneously

TX and RX LED indicator

UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.

Fully assisted hardware or X-On / X-Off software handshaking.

Data transfer rates from 300 baud to 250 kilo-baud at RS232 voltage levels.

512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput

Adjustable receive buffer timeout.

ESD protection on RS232 I/Os exceeding ±15kV IEC1000-4-2 Air Gap Discharge, ±15kV for Human Body Mode (HBM) and ±8kV IEC1000-4-2 Contact Discharge.

ESD protection on USB lines exceeding ±2kV for Human Body Mode (HBM), ±200V for Machine Mode (MM) and ±500V for Charged Device Mode (CDM).

Low operating and USB suspend current.
Low USB bandwidth consumption.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.

OS Supported
Windows 7 / 8 / 8.1 / 10 32,64-bit
Windows Vista
Windows XP 32,64-bit
Windows XP Embedded
Windows CE.NET 4.2 , 5.0 and 6.0
MAC OS OS-X
Linux 2.6.32 or later
Android

Connector
USB : USB Type A
RS232 : DB9 Male

Cable Length : 10 cm (3.94″) and longer as optional
Power Mode : Bus Powered
Operating Voltage : 5VDC
Power Consumption : 5V x 90mA at Max.
Net Weight : 30 g
Dimension (L x W x H) :
Approvals : CE, FCC
