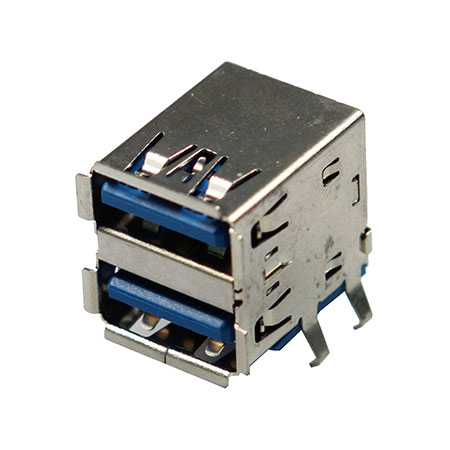

USB 3.0 Female Connector
| Item No.: | U562A-18S20-XXX - RIGHT ANGLE / FEMALE / A TYPE / |
Supplier Details
Country: Taiwan
State: TAIWAN (R.O.C)
City: New Taipei City 235
Address: 4F., No. 123, Lide St., Zhonghe Dist.
TEL: +886-2-82276428
Fax: +886-2-82276427
Online Showroom:
93 Products
- Application : USB CONNECTOR
The default or standard format intended for desktop or portable equipment, the mini intended for mobile equipment , and the thinner micro size, for low-profile mobile equipment such as mobile phones and tablets. - USB ports allow USB devices to be connected to each other with and transfer digital data over USB cables. They can also supply electric power across the cable to devices that need it.
- Solder Type : Right Angle / Female / A Type
- Rohs Compliance & ISO Certification ( ISO9001, ISO14000 )
- Material : LCP, PBT
- Housing : Nylon-9T UL94V-0 rated color blue
- Contact Material : Phosphor bronze
- Contact Area Plated : Gold flash over 30u-inch Pd-Ni
- Solder Area Plated : 100 to 200u-inch tin plated
- Shell Material : Phosphor bronze tin plated
- Current Rating : 1.8A
- Contact Resistance : 30mΩ maximum
- Insulation Resistance : 100mΩ minimum
- Dielectric Withstanding Voltage : 100V AC/minute
- All versions of USB specify cable properties; version 3.X cables include additional data paths. The USB standard included power supply to peripheral devices; modern versions of the standard extend the power delivery limits for battery charging and devices requiring up to 100 watts. USB has been selected as the standard charging format for many mobile phones, reducing the proliferation of proprietary chargers.
- Connector types: Standard connectors, Mini connectors, Micro connectors, OMTP standard, USB 3.x connectors and backward compatibility, USB On-The-Go connectors, USB-C etc...
- For Communication Systems, Industrial Computers, Aftermarket parts, Electronic Products etc.
- Quality Assurance :
Sincere State Electronic is a professional international manufacturer with 20 years experience. Main products are wire to board connectors,wire to wire connectors, wire harness, cable assemblies and connector tooling/model development manufacturing. And its products are compatible with Europe, the United States, Japan, Korea and other international brands connectors.
DOWNLOAD SPECIFICATION
