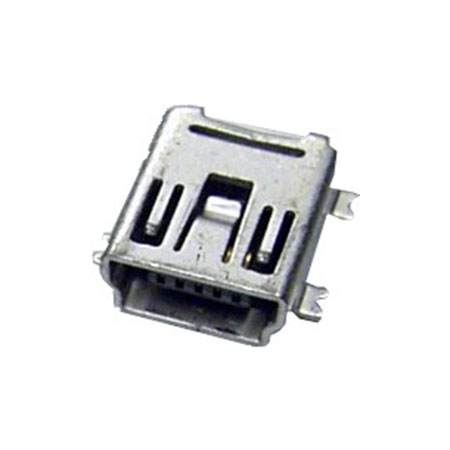

MINI USB Connector
| Item No.: | U560D-05S30-XXX - SMT / FEMALE / MINI USB A/B TYPE |
Supplier Details
Country: Taiwan
State: TAIWAN (R.O.C)
City: New Taipei City 235
Address: 4F., No. 123, Lide St., Zhonghe Dist.
TEL: +886-2-82276428
Fax: +886-2-82276427
Online Showroom:
93 Products
- Application : USB CONNECTOR
The default or standard format intended for desktop or portable equipment, the mini intended for mobile equipment , and the thinner micro size, for low-profile mobile equipment such as mobile phones and tablets. - For Battery Charging and Power Delivery etc...
- Solder Type : SMT / Female / Mini USB A/B Type
- ISO Certification : ISO9001 & ISO14000
- Rohs Compliance : OK
- Material : PBT, LCP
- Current Rating : 5V/1A
- Insulator Resistance : 100MΩ (minimum)
- Contact Resistance : 30MΩ (maximum)
- Dielectric Withstanding : 100V AC/minute
- Contact Material : Phosphor bronze gold 10u-inch
- Housing : LCP
- Shell : Phosphor bronze Ni 120u-inch
- All versions of USB specify cable properties; version 3.X cables include additional data paths. The USB standard included power supply to peripheral devices; modern versions of the standard extend the power delivery limits for battery charging and devices requiring up to 100 watts. USB has been selected as the standard charging format for many mobile phones, reducing the proliferation of proprietary chargers.
- Connector types: Standard connectors, Mini connectors, Micro connectors, OMTP standard, USB 3.x connectors and backward compatibility, USB On-The-Go connectors, USB-C etc...
- For Electronic Products, Aftermarket parts, Industrial Computers, Communication Systems etc.
- Quality Assurance :
Sincere State Electronic is a professional international manufacturer with 20 years experience. Main products are wire to board connectors,wire to wire connectors, wire harness, cable assemblies and connector tooling/model development manufacturing. And its products are compatible with Europe, the United States, Japan, Korea and other international brands connectors.
DOWNLOAD SPECIFICATION
