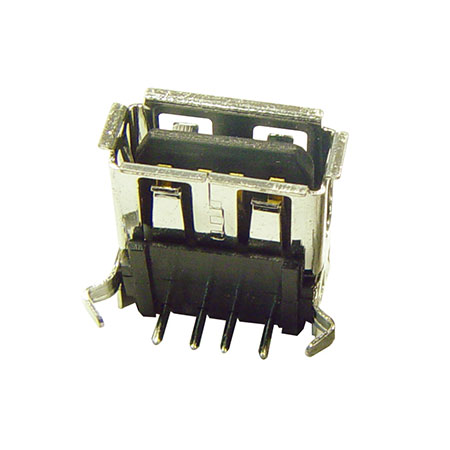

Right Angle USB Connector
| Item No.: | U560A-04S10-XXX - RIGHT ANGLE / FEMALE/ A TYPE |
Supplier Details
Country: Taiwan
State: TAIWAN (R.O.C)
City: New Taipei City 235
Address: 4F., No. 123, Lide St., Zhonghe Dist.
TEL: +886-2-82276428
Fax: +886-2-82276427
Online Showroom:
93 Products
- Application : USB CONNECTOR
The default or standard format intended for desktop or portable equipment, the mini intended for mobile equipment , and the thinner micro size, for low-profile mobile equipment such as mobile phones and tablets. - For Electronic Products, Industrial Computers, Communication Systems, Aftermarket parts etc.
- Type : Right Angle / Female / A Type
- Rohs Compliance & ISO Certification (ISO9001, ISO14000)
- Material : LCP, PBT
- Housing : PBT, UL94V-0 rated
- Contact : Phosphor bronze
- Shield : Phosphor bronze
- Contact : G/F over pd-ni 30u-inch
- Shield : Light Tin 120u-inch (min)
- Over Cu 100u-inch (min)
- Contact Resistance : 30mΩ maximum
- Dielectric Withstanding Voltage : 750V AC (rms)
- Insulation Resistance : 1,000MΩ min
- Mating Force : 3.57kg max
- Unmating Force : 1.02kg min
- All versions of USB specify cable properties; version 3.X cables include additional data paths. The USB standard included power supply to peripheral devices; modern versions of the standard extend the power delivery limits for battery charging and devices requiring up to 100 watts. USB has been selected as the standard charging format for many mobile phones, reducing the proliferation of proprietary chargers.
- Connector types: Standard connectors, Mini connectors, Micro connectors, OMTP standard, USB 3.x connectors and backward compatibility, USB On-The-Go connectors, USB-C etc...
- Quality Assurance :
Sincere State Electronic is a professional international manufacturer with 20 years experience. Main products are wire to board connectors,wire to wire connectors, wire harness, cable assemblies and connector tooling/model development manufacturing. And its products are compatible with Europe, the United States, Japan, Korea and other international brands connectors.
DOWNLOAD SPECIFICATION
