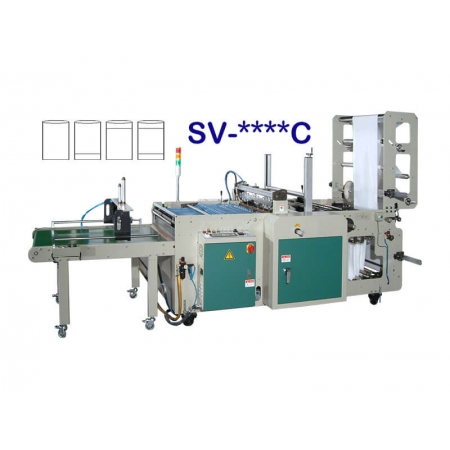

Universal Side Sealing Bag Machine - SV-C Series

Universal Side Sealing Bag Machine

Item No.: SV-C Series
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom: 44 Products
Universal Side Sealing Bag Making Machine

MACHINE FEATURE:
  • The EPC device, combined with the unwinder, is sensitive and stable for easy operation.
  • Fully automatic unwinder, unwinding speed automatically adjusted. (Optional)
  • Triangle folding device easily and smoothly folds the single layer film into double. (Optional)
  • Choice of overlapping EPC and triangle folding device to save on occupied installation space.
  • Mixed use of multifunctions can produce many different styles of bags.
  • Standard equipments are double ip folding device, bottom gusset device and side opening device. (Trimming or side opening)
  • Special rotary sealing knife design, makes the cleaning of sealing knife safe, convenient, quick and easy.
  • Special pneumatic gate and pressing roller device, cooperating with the main machine, can carry and out-feed the blocked finished product.
  • Strong and light structure, along with the rolling wheel with brake, make the machine easy to move from place to place.
  • Optional equipments are the self-adhesive device, pearl and insertion device, punching unit, double sealing device and block out-feed device.

SPECIFICATIONS:   P.S. Customization could be available.
Model Bag Size(mm) Production Sped
(bags/min.)
Thickness of
Film (mm)
Power Required Machine Size
xWxH(M)
Length Width Top Folding Bottom
Guessting
SV-800C 100~760 76~760 Up to 75mm Up to 65mm 30~160 0.01~0.2 6.5KW 4.5x1.55x2.0
SV-1000C 100~960 76~860 8.7KW 4.7x1.75x2.0
SV-1200C 100~1150 76~960 30~150 9.1KW 4.9x1.95x2.1

Option equipment :
  1. Air Compressor:3HP
  2. Double Sealing Device
  3. Punching Device
  4. Top-fold Seal Device
  5. Self-adhesive Tape Feeding
  6. Perforation Device
  7. Air Shaft
  8. EPC with Auto Unwinder
  9. Triangle Folding Device
※Specifications are subject to change without notice.
