Universal Material Testing Machine
| Item No.: | UT-300 |
Supplier Details
Country: Taiwan
City: New Taipei City
Address: 6F.-10, No. 14, Ln. 609, Sec. 5, Chongyang Rd., Sanchong Dist.
TEL: +886-3-5368830
Fax: +886-3-5368891
Online Showroom:
101 Products

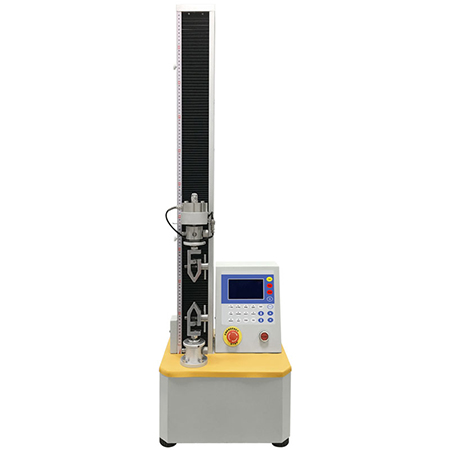

Universal Material Testing Machine
【Origin】
Taiwan
【Introduction】
The core components of the system using the latest American ADI ultra-precision 24-bit AD, the sampling rate of 500 times / second, the resolution of one of 100,000. And 7 points calibration to further improve accuracy. High-definition large screen blue LCD display (5.8 "), directly enter the test parameters, Chinese and English user interface layer prompts, easy operation. In addition to RS232 for the PC communication, professional measurement software, real-time display: Force - displacement, force - time, displacement - time, stress - strain curves automatically calculate the maximum force, yield strength, average force, maximum deformation, yield point, elastic modulus and other parameters, and has a flexible report editing and columns Printing function; report can display and print the value of tensile strength (Mpa).
【Function and Feature】
【Accessories】
【Optional】
【Specs】
【Note】
【Origin】
Taiwan
【Introduction】
The core components of the system using the latest American ADI ultra-precision 24-bit AD, the sampling rate of 500 times / second, the resolution of one of 100,000. And 7 points calibration to further improve accuracy. High-definition large screen blue LCD display (5.8 "), directly enter the test parameters, Chinese and English user interface layer prompts, easy operation. In addition to RS232 for the PC communication, professional measurement software, real-time display: Force - displacement, force - time, displacement - time, stress - strain curves automatically calculate the maximum force, yield strength, average force, maximum deformation, yield point, elastic modulus and other parameters, and has a flexible report editing and columns Printing function; report can display and print the value of tensile strength (Mpa).
【Function and Feature】
- LCD screen.
- Force analysis: 1 / 200,000, the sampling frequency of 500 times / second.
- Force accuracy: ± 0.3% of the displayed value (0.2 ~ 100% FS).
- Applicable range: 300 kg (3000N), optional other specifications.
- Displacement resolution: 0.001mm.
- Test speed：0.1mm / min~500mm / min. (according to customer requirements to 1000 mm/min)
- Speed Accuracy：± 0.5% of the displayed value.
- Single test, manual 10 points statistics, and automatically calculate the average value, the fracture value (suitable peel, tear test), can store multiple sets of data.
- Unit arbitrary switch：Power：g / kgf / N / KN / lbf；Displacement：mm / cm / in.
- Automatic return function.
- Overload protection.
- With a variety of test methods, such as: ordinary, stretch side, stretch round, tear, peel, set load, positioning shift, spring, three bending, four bending.
- Printable test results, and with the point that print function.
- Standard RS232 computer interface.
【Accessories】
- Sharp mouth Fixture x2.
【Optional】
- A small printer.
【Specs】
【Note】
- Photos are for references only.
