Universal Bag Machine - SVN Series

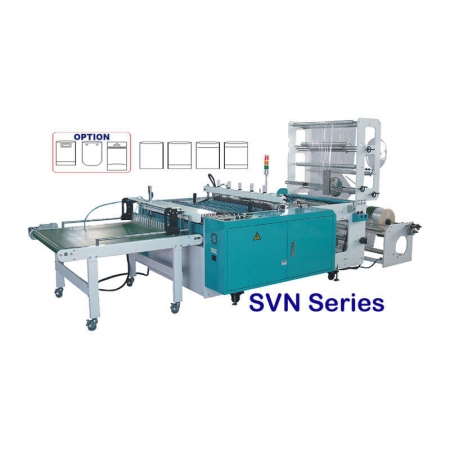

Universal Bag Machine

Item No.: SVN Series
Supplier Details
Country: Taiwan
City: Chiayi City600
Address: No. 24, Bo'ai New Residential Quarter, West Dist.
TEL: +886-5-2379088
Fax: +886-5-2375004
Online Showroom: 44 Products
Universal Bag Making Machine

MACHINE FEATURE:
  • The machine can design side seal, bottom seal and double seal bags. It only takes half hour to change this material.
  • Adopts a servo driven control system, high speed production output at 200 bags/min.
  • Abnormality indicator can protect the machine from harm and provides easy troubleshooting.
  • Uses advanced microprocessor control, can change size quickly and accurately print logos, etc. on the bags.

SPECIFICATIONS:   P.S. Customization could be available.
Model Cutting Width(mm)  Cutting Length(mm)  Speed(bags/min) Thickness of Film(mm) Power Required Machine Size
LxWxH(M)
Side Seal Bag Bottom Seal Double Bottom Seal Side Seal Bag Bottom Seal Double Bottom Seal Side Seal Bag Bottom Seal Double Bottom Seal
SVN-800C 60~770 60~770 80~770 60~770 60~770 80~770 30~250 30~160 30~200 0.012~0.2 9KW 4.6x1.55x1.65
SVN-1000C 60~770 60~1020 80~1020 60~1020 60~800 60~800 11KW 4.6x1.8x1.65
SVN-1200C 60~770 60~1220 80~1220 60~1220 60~800 80~800 12KW 4.6x2.00x1.65

Optional Equipment:
  1. Ultrasonic Wheel Sealing Device
  2. Punching Device
  3. Terminal Deceleration Device
  4. Patch HandleDevice
  5. Chicken Bag Device
  6. Reinforced Seal Device
  7. Air Shaft
※Specifications are subject to change without notice.

We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

Universal Bag Machine

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
