UIP Rod Seals
| Item No.: | UIP |
Supplier Details
Country: Taiwan
City: Nantou County
Address: No. 336, Gongye Rd., Nantou City
TEL: +886-49-2255011
Fax: +886-49-2250035
Online Showroom:
47 Products
Product Description

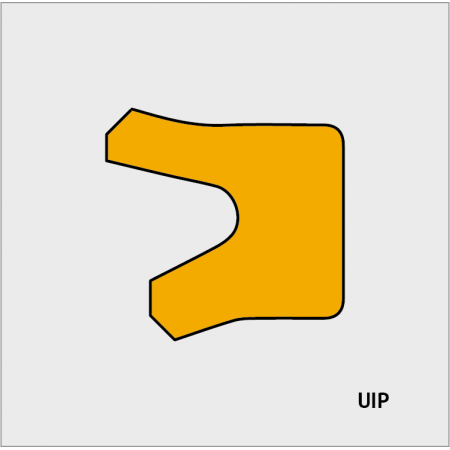

The UIP Rod Seal is a one-way, U-shaped rod seal with an asymmetrical design that keeps dirt out to protect the rod. The inner diameter of the seal has a shortened lip which increases the cross-sectional area. This seal is both an excellent dynamic as well as static seal. It can withstand pressures of up to 40Mpa.
Material
Polyurethane
Product Advantages
Application
Earth-moving machinery, agricultural equipment, injection molding machines, fork-lifts, loading platforms and standard cylinders.
Operating Conditions
Gap Dimension
Surface Roughness
The UIP Rod Seal is a one-way, U-shaped rod seal with an asymmetrical design that keeps dirt out to protect the rod. The inner diameter of the seal has a shortened lip which increases the cross-sectional area. This seal is both an excellent dynamic as well as static seal. It can withstand pressures of up to 40Mpa.
Material
Polyurethane
Product Advantages
- According to ISO 5597
- Good media resistance
- Excellent wear resistance
- Wide operating temperature range
- Very good static and dynamic tightness
Application
Earth-moving machinery, agricultural equipment, injection molding machines, fork-lifts, loading platforms and standard cylinders.
Operating Conditions
| Media | Mineral oils |
| Pressure | ≦40 Mpa |
| Speed | ≦0.5 m/s |
| Temperature Range | -40°C , +100°C |
Gap Dimension
| 140 Bar | 210 Bar | 350 Bar |
| 0.27 mm | 0.16 mm | 0.06 mm |
Surface Roughness
| Sliding Surface | Groove Base | Groove Flanks | |
| Ra | 0.2~0.4 µm | ≦0.8 µm | ≦3.2 µm |
| Rz | 0.8~1.6 µm | ≦3.2 µm | ≦12.5 µm |
