U Bolt - 1-2

U Bolt

Item No.: 1-2
Supplier Details
Funda Fastener Co., Ltd.
Country: Taiwan
City: Taoyuan City 33849
Address: No. 115, Luzhu St., Luzhu Dist.
TEL: +886-3-3224900
Fax: +886-3-3220017
Online Showroom: 39 Products

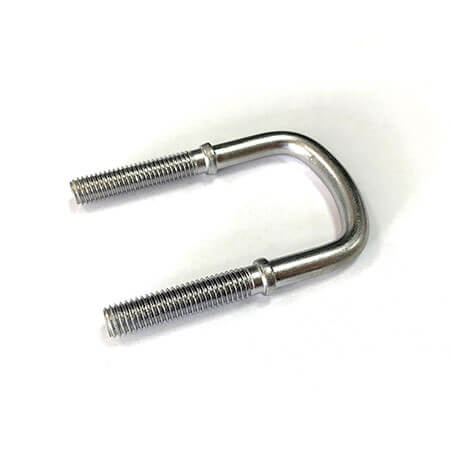

U bolt
  1. Material: Stainless steel(SUS302,SUS304)low carbon(S10C~S45C)
    Alloy steel( SCM415~SCM440)Boron steel(10B21),SAE1010~SAE1045
  2. Plating: white zinc plated(withstand 48hrs with no evidence of white rust), thickness 8-13µm.
  3. Heat treatment:HRC 24~30.
  4. Secondary machining:Knurling and bending.
  5. Lead time:50-60 days
  6. Origin: Taiwan
  7. Shipping term: FOB Taiwan or as your request
  8. Sizes:3/8"-16UNC and designs can be customized
  9. Packing method: load in the carton and stack on the pallet with packing wrap
  10. Carton:not exceed 20 kgs,Pallet size:110x110x15cm
  11. Certification:ISO 14001/ISO 9001/IATF16949
  12. Payment term:T/T
  13. Application: U-bolt is a bolt in the shape of the letter U with screw threads on both ends.

    U-bolts have primarily been used to support pipework, pipes through which fluids and gasses pass. As such, U-bolts were measured using pipe-work engineering speak. A U-bolt would be described by the size of pipe it was supporting.
We have been successful in establishing our brand and sale to the international market due to our excellent quality and service of

U Bolt

. Delivering the best quality products conforming to the cultural needs of the client is the ultimate goal of us.
