Three Layer Insulated Wire - TRW(B)、TRW(F)、UTWA-3X

Three Layer Insulated Wire

Item No.: TRW(B)、TRW(F)、UTWA-3X
Supplier Details
JASDI CHEMICALS CO., LTD.
Country: Taiwan
City: Taichung City 428017
Address: No. 12-1, Qiancun E. Rd., Daya Dist.
TEL: +886-4-25685848
Fax: +886-4-25685857
Online Showroom: 103 Products
Safty:
  1. UL File No. E211989 (OBJT2)、E237516 (OBJS2)
  2. VDE License No. 40018821
  3. RoHS Compliant
Construction:
  1. Conductor：0.1mm-1.56mm.
  2. Temp. Class：130℃，155℃，180℃
  3. All color
SPECIFICATION
  • Conductor: Solid and Stranded Copper & TIN Plated Copper

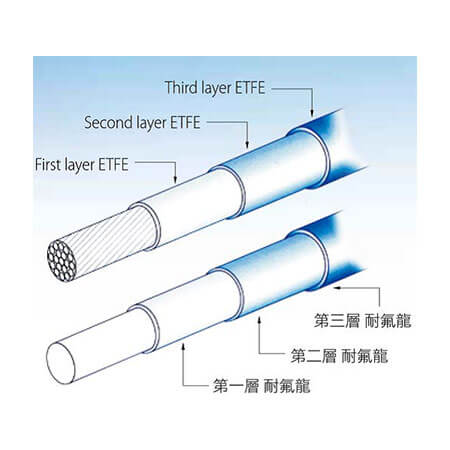

  • Insulation: ETFE
  • Wall Thickness: 0.1mm
  • Temperature & Voltage Rating: Rating 130℃~200℃, 600V(Class B & Class F)
  • Dielectrical Strength: 70KV/mm (0.1mm Wall Thickness: 6KV up)
  • Colors: Pink, Orange, Yellow, Green, Blue, Black, Violet
  • Benefit: Medical grade triple wire/425 Vrms(600 Vpk) can pass 4700V A.C.test voltages.
                 Max 600 Vpeak for MOPP, max 1410 Vpeak for MOOP
