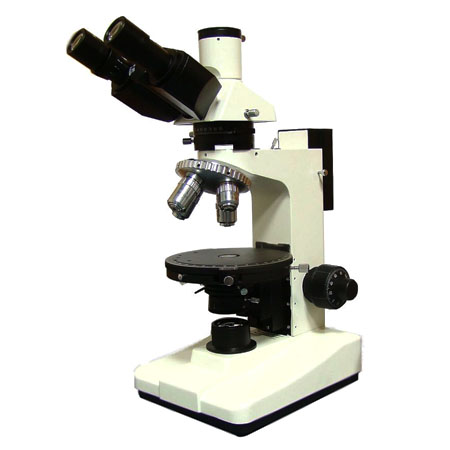

Transmitted Reflected Polarization Microscope
Item No.: | MP40 |
Supplier Details
Country: China
City:
Address:
TEL: +--
Fax: +--

Online Showroom:
41 Products
Features
◆ Transmitted, Reflected, transmitted/reflected illumination can be choosn
◆ Equipped with strain-free plan objectives(center adjustable) and wide field eyepiece
◆ Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
◆ Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener£¬Stage vertical effective movem
Standard Configuration
◆ Transmitted, Reflected, transmitted/reflected illumination can be choosn
◆ Equipped with strain-free plan objectives(center adjustable) and wide field eyepiece
◆ Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
◆ Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center adjustable and with tightener£¬Stage vertical effective movem
Standard Configuration
Item | Specification | |
Eyepiece | Wide field WF10X (¦µ18mm) | |
Division eyepiece 10X (¦µ18mm) 0.10mm/div | ||
Objective (center adjustable) | Strain-free plan achromatic objective (no cover glass) PL 5X/0.12 | |
Strain-free plan achromatic objective (no cover glass) PL L 10X/0.25 | ||
Strain-free plan achromatic objective (no cover glass) PL L40X/0.60 (spring) | ||
Strain-free plan achromatic objective (no cover glass) PL L60X/0.75 (spring) | ||
Reflected illumination | Polarizer | Reflected illumination 90°rotatable |
Illumination | 6V 20w, halogen lamp, adjustable brightness | |
Transmitted illumination | Polarizer | 360°rotatable, have 0,90,180,270 four scale |
Collector | For halogen lamp illumination | |
Illumination | 6V 20w, halogen lamp, adjustable brightness | |
Abbe condenser | N.A. 1.25 Rack & pinion adjustable | |
Eyepieces tube | Trinocular, Inclination of 30˚, can send 100% of the image light to top photography port | |
Intermediate attachment | Built-in analyzer, can switch to normal observe or polarizing observe freely ,90° rotatable with scale, minimum retardation resolution 12' | |
Bertrand lens , impellent style , center adjustable | ||
¦Ë compensator | ||
¦Ë/4 compensator | ||
Quarts wedge compensator | ||
Nosepiece | Quadruple (Frontward ball bearing inner locating) | |
Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm | |
Stage | Rotatable stage, Diameter ¦µ150mm, 360° graduated (in 1° increments), minimum retardation resolution 6' center adjustable and with tightener |
Optional accessories
Item | Specification |
Eyepiece | Wide field WF16X(¦µ11mm) |
Objective (center adjustable) |
Strain-free plan achromatic objective(cover glass:0.17mm) PL 20X/0.40 |
Strain-free plan achromatic objective(cover glass:0.17mm) PL 100X/1.25 (Oil ,spring) | |
Strain-free plan achromatic objective(no cover glass) PL L 20X/0.40 | |
Strain-free plan achromatic objective(no cover glass) PL L 50X/0.70 | |
Strain-free plan achromatic objective(no cover glass) PL L 80X/0.80 | |
Strain-free plan achromatic objective (Dry) (no cover glass) PL L 100X/0.85 (Spring) | |
Nosepiece | Quadruple (Frontward ball bearing inner locating)£¬adjust the center of objective |
Slide moving holder | Moving range: 30mmX25mm |
Camera | Mshot digital microscope camera |
