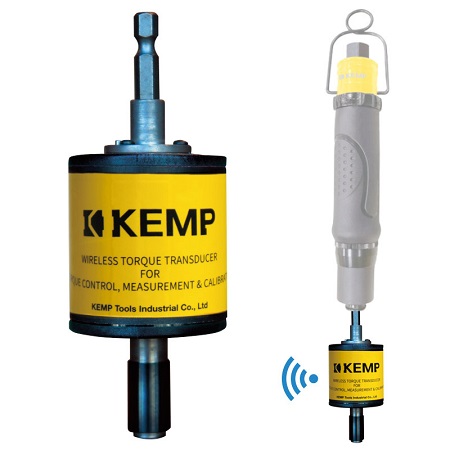

Wireless Torque Sensor
Item No.: | E-BTM-S22T10 |
Supplier Details
Country: Taiwan
City: New Taipei City 242018
Address: 3F., No. 212, Sec. 3, Zhonghua Rd., Xinzhuang Dist.
TEL: +886-2-85219935
Fax: +886-2-85219957
Online Showroom:
100 Products
Wireless Torque Transducer & Controller
Detection / Data transmission / Smart control / Compensation
KEMP Intelligence system
We combining assembly tightening tools with KEMP's intelligent system products, and then upgrade to fastening tools with intelligent control, data recording and real-time monitoring.
Application:Upgrade general electric / air / hand tools with function below.
Detection / Data transmission / Smart control / Compensation
- Versatile operation modes for option:Oil pulse Tools, Shut-off type Clutch, Torque multiplier, Click Torque Wrench
- Signal according to:Torque, Angle
- RF Frequency band:60 frequency band used with the E-BTM-C Torque Controller.
- Torque Transducer self-monitoring (electric+transmitting+torque+angle+usage count)
- On & off Reed switch (magnetic on/off). Auto off when non transmitting torque 5min up.
- Software installation:Support Software & APP on Android & Microsoft. Torque curve display on Microsoft only.
- LED signal light [ Blue Light on:RF ok / Blue- flicker:system initialize ] [ Orange on:Low bettery / Orange- flicker:Error ] [ Red Light on:charging ] [ Green Light on:charge complete ]
- WARNING:The dynamic wireless transducer will rotate during operation. Do not holding the transducer when operating to avoid accidental injury due to Incorrect operation.
- Origin:Taiwan
KEMP Intelligence system
We combining assembly tightening tools with KEMP's intelligent system products, and then upgrade to fastening tools with intelligent control, data recording and real-time monitoring.
Application:Upgrade general electric / air / hand tools with function below.
- Fastening programming:With Fastening programming management, can set the function for fastening quantity, sequence and cycle.
- Fastening process:Display on mobile phone, tablet, computer through software, with real-time monitoring, data display, visual prompt, and sound warning.
- Fastening result:Various information records, date and time, station number, torque angle, torque curve, data transmission and management traceability after fastening.
- Fastening QC:Can be used as quality inspection application torque detection, angle detection, data analysis.
