Nut Rivet Tool
| Item No.: | CCP-25AU |
Supplier Details
Country: Taiwan
City: New Taipei City 221
Address: No.159, Sec. 2, Datong Rd., Xizhi Dist.
TEL: +886-2-86926800
Fax: +886-2-86926804
Online Showroom:
39 Products

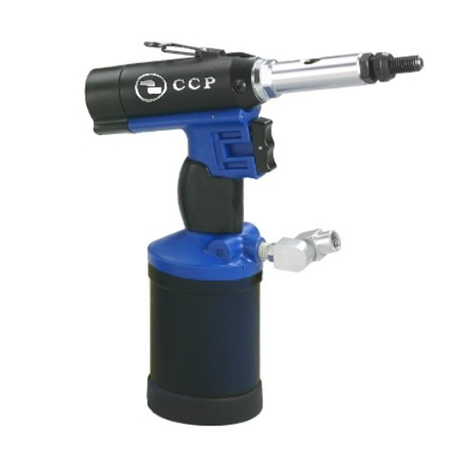

This CCP-25AU rivet nut tool have power strength 3800 lbs can be widely used in the industries such as railway, elevator, refrigeration facility, medical equipment and so on.
Spin-on, pull-up, spin-off action.
Ergonomic texture coated composite housing, Hydro-pneumatic operation.
Easy adjustable anvil head & lock nut designed for obtaining the most effective stroke.
High pressure cylinder heat treated aluminum alloy made Hydraulic Section for the best rigidity.
Can use the standard 6-32 ~ 1/2-13UNC rivet nut all materials.
Spin-on, pull-up, spin-off action.
Ergonomic texture coated composite housing, Hydro-pneumatic operation.
Easy adjustable anvil head & lock nut designed for obtaining the most effective stroke.
High pressure cylinder heat treated aluminum alloy made Hydraulic Section for the best rigidity.
Can use the standard 6-32 ~ 1/2-13UNC rivet nut all materials.
| Specifications | Country of Origin: Taiwan Tie-rod sizes: #6, #8, #10, 1/4, 5/16, 3/8, 1/2 inch Stroke: 7 mm (0.276 inch) Working Air Pressure: 85 ~ 95 PSI (5.9 – 6.68 kg/cm2) Ave. Air Consumption: 4 CFM Pull Force (85 psi): 2176 kg (4800 lbs) Tool Weight: 2.4 kg Height: 317 mm Length of Placing Head: 278 mm Base Diameter: 88.6 mm Safety/Quality Approvals: ISO9001; CE Sales Method: Export, Manufacture, OEM/ODM |
