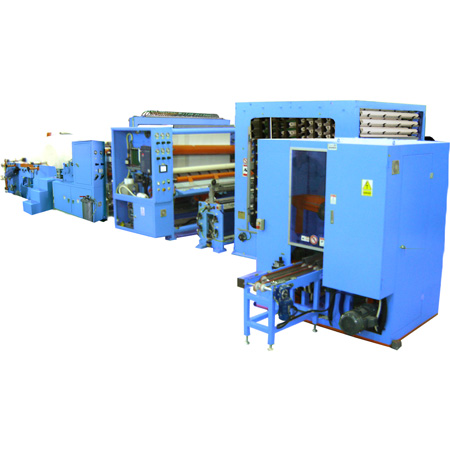

Paper Roll Making Machine

Item No.:

AN-63110-63230S-63230A

Supplier Details

A-NEW Industrial Co. Ltd.

Country: Taiwan

City: New Taipei City 24257

Address: No. 43, Jianguo 1st., Rd., Xinzhuang Dist.

TEL: +886-2-29085266

Fax: +886-2-29086355

Online Showroom: 51 Products

Product Details Supplier Profile

Toilet Paper Roll / Kitchen Towell Rewinding, Perforating Machine
(Nonestop type, Steel to Rubber Embosser, With Glue Sticker, Paper Core Auto Feeding System)

Jumbo Roll width: 1600 / 1700 / 1800 / 1900 / 2000 / 2100 / 2200 / 2300 / 2400 / 2500 / 2600 / 2700mm
Machine's price is changed in according to different Parent Roll width.
Embossing Device w/lamination Sticker: Steel roller * 2 pcs + Rubber roller * 2 pcs
Jumbo Roll Diameter: 1500 mm φ Max
Core Dia. of Jumbo Roll: 3" (76.2 mm)
Basic Weight: 17-20 g/㎡
Mechanical Speed: 200~250 M/min (Depend on material quality and roll sheets)
Log Diameter: 100-120 mm φ
Core Dia. Of Finished Product: 35-50 mm φ
Perforating Length: 114.3 mm
Slitting width: 150 mm
Minimum Slitting Width: 100 mm
Core Glue System: 1 set
Automatic Tail Glue system: 1 set
Transmission: Belt, timing belt, con-pulley
Electric equiment: by international standard
Air compressed: air source 7-8 kg/m²
Jumbo Roll Stand: 2 pcs
Jumbo roll shift system (by chain).
Color of machine: Depend on buyer
Steel roller * 2 pcs + Rubber roller * 2 pcs

Log Accumulator

Total Capaity: 120 pcs
Effective capacity: 100 pcs

Disc Type Log Cutter (with micro computer touch screen controlling device. )

Cutting lane: 2 lanes
Log Outside Dia.: one size among 100-140 mmφ
Cutting Length: 90 - 300 mm (adjustable)
Operating Speed: 150 cuts/min. (2 rolls/per cut), variety by cutting length
Cutting Knife: 610mm φ
Electric equiment: by international standard
Control system: by PLC, Servo motor
