Technical Specification sheet:
Item NO.TM-8008

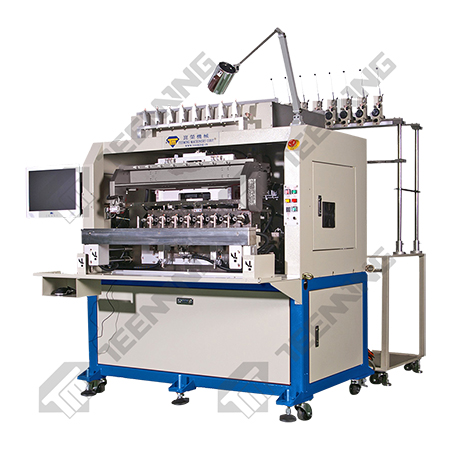

Description: 8 SPINDLE WINDING MACHINE
Number of spindles: 8
Control systems: AC Servo Motor
Data storage volume: 1GB CF Card
Tensioner type: Mechanical
Spindle Pitch: 80mm
Max.Bobbin Diagonal: 60 mm Bobbins width under 55mm
Max.Width of winding: 95 m/m
Winding Speed: 9000 RPM
Winding Direction: CW/ CCW
Axis Stop Accuracy: +/-0.225 degrees
(AWG/mm) Wire Range: AWG48~24/0.03~0.5mm
Maximum Travel Distance X: 100 m/m
Maximum Travel Distance Y: 100 m/m
Maximum Travel Distance Z: 80 m/m
X YZ Axes Increment(Step): 0.02mm (mechanical),0.001 mm (program)
Wire Wrapping Angle: 0°/ 90°
Maximum Wrapping Speed: @200mm/sec
Power source: 3¢ AC 220V,50/60 HZ
Consumed power: 4KW
Air Pressure Supply Required: 5-6 KGS/cm2( =0.5-0.6MPA)
Machine Dimension (Include screen): 175(L)X 125(W)x 155 (H)cm
Machine Dimension (Include screen and tensioner case): 175(L)x235(W)x 160(H)cm
Machine weight: 650KGS
Other Choice:
Wire Twister(Wire diameter under 0.05m/m)
Automatic Load & Unloading(Bobbin width under 22mm)
Cutter (Wire Diameter: Over 0.28mm)
Knife(Wire Diameter: Over 0.15m/m)
Electrical tensioner
Other Remark:
Spindle: 8
Maximum twisting length: 300mm
Number of Wire Strands: 1.3.5.7.9...Programmable
Maximum twisting speed: 5,000 RPM
Suit coil: 50、60 synchronous motor/~automobile igntion（Primary、secondary)
Application: Mahjong machine，Automobile ignition

Special Point:

1. Our machines use PLC to control,you can accurately adjust winding speed of automatic winding machine.
2. Wire is closely and neatly, not be effected by wire size.
3. According to the different input procedures can be around a variety of different windings in the same machine.
4. A person's labor force can complete the work of more than a dozen people,greatly improving efficiency,and reduce business costs.
5. Automatic winding machine to save energy.
6. The workshop staff can be completed after a simple training,operation,more humane.
7. Can be more diverse around the sample.
8. You can accurately adjust the winding speed of automatic winding machine,bar number,time,debugging is also convenient.
