Technical-Specifications:
Item NO.TM-5008

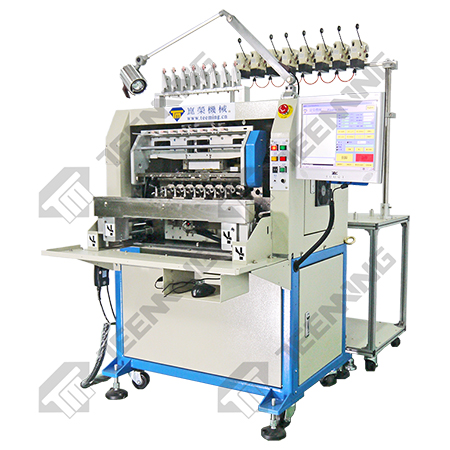

Description: 8 AXIS WINDING MACHINE
Number of spindles: 8
Control system: AC Servo Motor
Data storage: 1GB CF Card
Tensioner: Mechanical
Spindle Pitch: 50mm
Max.Bobbin Diagonal: 40 mm Bobbin width under 32mm
Max.Width of winding: 85 m/m
Winding Speed: 12000 RPM/18000RPM
Winding Direction: CW / CCW
Spindle Stop Accuracy: +/-0.225 degrees
(AWG/mm) Wire Range: AWG48~28/0.03~0.3mm
Maximum Travel Distance X ->90 mm
Maximum Travel Distance Y->65 mm
Maximum Travel Distance Z->50 mm
XYZ Axes Increment(Step): 0.02mm (mechanical) / 0.001 mm (program)
Wire Wrapped Angle: 0°/90°
Maximum Wrapped Speed: 200mm/sec
Power source: 1¢ AC 220V, 50/60 HZ
Consumed power: 3KW
Air Pressure Supply Required: 5-6 KGS/cm2(=0.5-0.6MPA)
Machine Dimension (Include screen): 135(L)X 110(W)x 145 (H)cm
Machine Dimension (Include screen and tensioner case): 135(L)x235(W)x 160(H)cm
Machine weight: 465KGS
Option:
Wire-Twister(Wire diameter under 0.05mm)
Automatic Load & Unload(Bobbin width under 22mm)
Cutter(Wire Diameter: Over 0.28mm)
Knife(Wire Diameter: Over 0.15mm)
Electrical tension

Remarks
Axis: 8
Max. twisting length: 300mm
Number of Wire Strands: 1.3.5.7.9---->Programmable
Maximum twisting speed: 5000 RPM
Suit coil: 314、1927、T90
Application: Automobile Relay

Distinguishing Features:

1. Through the plc controller,you can accurately adjust the winding speed of automatic winding machine,bar number,time,debugging is also convenient.
2. The line closely and neatly,wire diameter deformation is not affected.
3. According to the different input procedures can be around a variety of different winder in the same machine.
4. A person's labor force can complete the work of more than many people,greatly improving efficiency,and reduce business costs.
5. Automatic winding machine can save energy.
6. The workshop staff can be completed after a simple training, operation,more humane.
7. Can be more diverses around the sample.
