Stator Winding Equipment
| Item No.: | TM-2502 |
Supplier Details
Country: Taiwan
City: NEW TAIPEI
Address: NO.8,LN.302,XINSHU RD.,XINZHUANG DIST.,NEW TAIPEI CITY 242,TAIWAN(R.O.C.)
TEL: +886-2-22060881
Fax: +886-2-22060800
Online Showroom:
33 Products
Technical Specifications:
Item NO.TM-2502
Number of spindles: 5-AXES/2-AXES
Control system: AC Servo Motor
Data storage: Hard Disk
Drive axes: 5-AXES
Spindle Pitch(mm): 250mm
Maximum wire(mm): 0.7mm
Maximum of Winding speed: (According to skeleton size and wire diameter to adjust to change)
(350rpm speed is 0.25diameter.55mm in the case of the vertical distance)
Winding Direction: CW/CCW
Maximum Travel Distance X: 240 mm
Maximum Travel Distance Y: 175 mm
Maximum Travel Distance Z: 140 mm
Power supply: AC 3-PHASE 220V
Consumed power: 8KW
Machine Size: 125(L)X 80(W)x 200(H)cm
Machine Weight: 400KGS
Options:
Electronic tensioners
Spool cover and tensioner shelf
Advantage:
Product introduction:

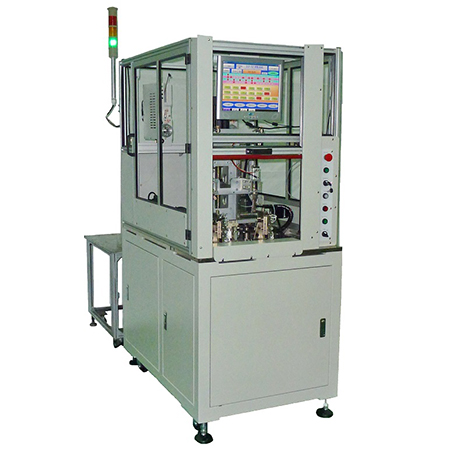

This machine is used for the first process of motor stator producing, it conducts gang control the machine winding main shaft, transfer cup indexing shaft, dip mold motor shaft through PLC control system assembly, and winds various types of enamelled copper wires.
It has advantages of winding premeter accurate, winding neat arrange, high production efficiency, saving labour, simple & reliable maintenance etc.
Item NO.TM-2502
Number of spindles: 5-AXES/2-AXES
Control system: AC Servo Motor
Data storage: Hard Disk
Drive axes: 5-AXES
Spindle Pitch(mm): 250mm
Maximum wire(mm): 0.7mm
Maximum of Winding speed: (According to skeleton size and wire diameter to adjust to change)
(350rpm speed is 0.25diameter.55mm in the case of the vertical distance)
Winding Direction: CW/CCW
Maximum Travel Distance X: 240 mm
Maximum Travel Distance Y: 175 mm
Maximum Travel Distance Z: 140 mm
Power supply: AC 3-PHASE 220V
Consumed power: 8KW
Machine Size: 125(L)X 80(W)x 200(H)cm
Machine Weight: 400KGS
Options:
Electronic tensioners
Spool cover and tensioner shelf
Advantage:
- vertical auto stator coil winding machine
- high efficiency and automation
- easy operation
- stable quality
- double station
Product introduction:
This machine is used for the first process of motor stator producing, it conducts gang control the machine winding main shaft, transfer cup indexing shaft, dip mold motor shaft through PLC control system assembly, and winds various types of enamelled copper wires.
It has advantages of winding premeter accurate, winding neat arrange, high production efficiency, saving labour, simple & reliable maintenance etc.
