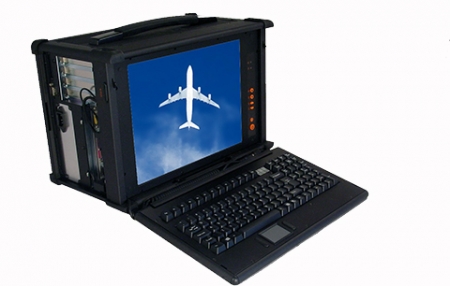

Compact all-aluminum portable computer enclosure for MicroATX or Passive Backplane motherboards
The Titan-T5 is a smaller portable computer enclosure from
the Titan all-aluminum family. It is built to be rugged, expandable,
upgradable and customizable with standard off-the-shelve components. The
T5 is available in both standard Micro-ATX or passive backplane form
factor. Either models will support a wide range of processors from Intel
and AMD which increases the product life cycle by not being obsolete in
this fast changing industry.
Card Retention System
T5 has a double card retention system for double protection that holds individual add-on cards securely in two points, with an adjustable pressure mechanism. Now half and full length cards are always in place during transport.
LCD Screen
15″ Active Matrix LCD with 3mm impact resistance glass protects the display from harsh and unfriendly environments.
System Cooling
Two intake fans are efficiently placed to draw in fresh air blowing directly at the add-in cards. The enclosure was designed to allow air to flow through guided path then draw the warm air out from the exhaust fan in the power supply. The intake fans have a removable washable filter, which keeps dust and unwanted particles away from the system.
Power Supply
PC 300W ATX type for the Micro-ATX model and 300W 1U industrial type for passive backplane model.
Applications
The Titan-T5 is the ideal platform on which to build solution for applications where survivability and reliability is crucial. The following applications are just some examples:
1. Military base and field operations
2. Field service & diagnostic application in many industries
3. Portable servers & workstations
4. Network and communications testing
5. Field data acquisition Geophysical exploration
6. Factory monitoring/automation
7. Video and audio editing on location
Features
1. 7 slots ATX form factor Rugged industrial build quality
2. All Aluminum Construction
3. Build-in 15″ TFT LCD Screen
4. Micro-ATX or Passive Backplane form factor platform
5. Add-on card stabilizer4-9 full length expansion slots by various models
6. Up to 4 shock-mounted drive bays
7. Detachable full size keyboard (water-resistant optional) Built-in glide point mouse pad
